TC7WZU04FU

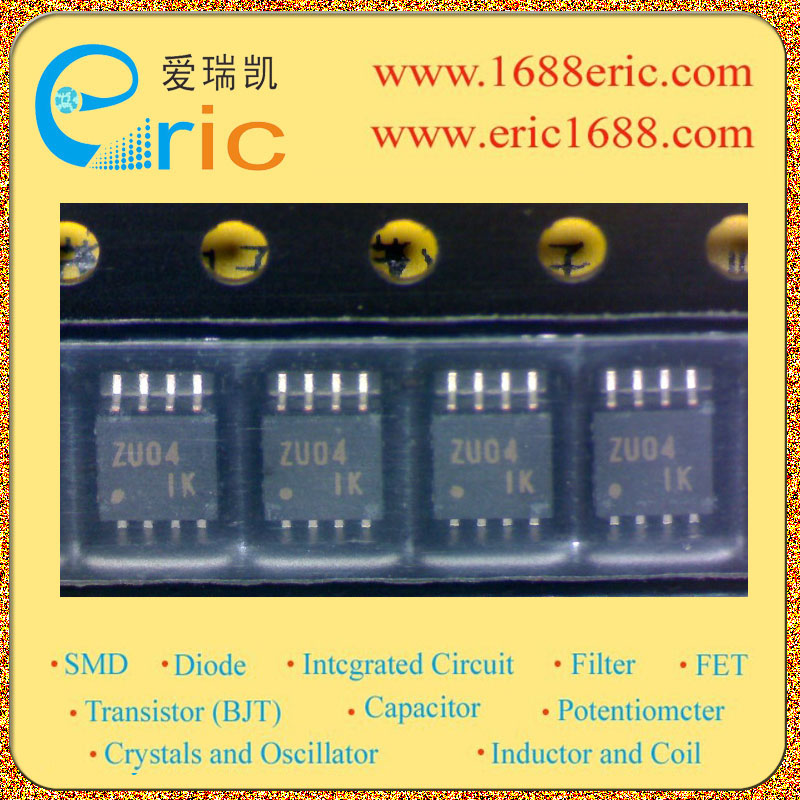

IC 反相器 TC7WZU04FU SM8 marking/标记 ZU04

逻辑类型Logic Type| 反相器 Inverter \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 1.65V~5.5V 静态电流IqCurrent - Quiescent Max| 1µA 输出高，低电平电流Current - Output High, Low| -16mA,16mA 低逻辑电平Logic Level - Low| 0.15v~0.2v 高逻辑电平Logic Level - High| 0.8v~0.85v 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 3ns @ 3.3V，30pF Description & Applications| Triple Inverter Un-Buffer ;• High output drive: ±16 mA min at VCC = 4.5 V • Low quiescent power: ICC < 1μA max. at VCC = 5.5 V, Ta=25℃ • Operation voltage range: VCC opr = 1.65~5.5 V • 5.5-V tolerant inputs 描述与应用| 三重逆变器（非缓冲区）;•高输出驱动：±16 mA（分钟）在VCC =4.5 V •低静态功耗：ICC<1μA（最大值）                                                                 在VCC =5.5 V，大= 25℃ •工作电压范围：VCC（OPR）  =1.65〜5.5 V •5.5-V宽容输入
