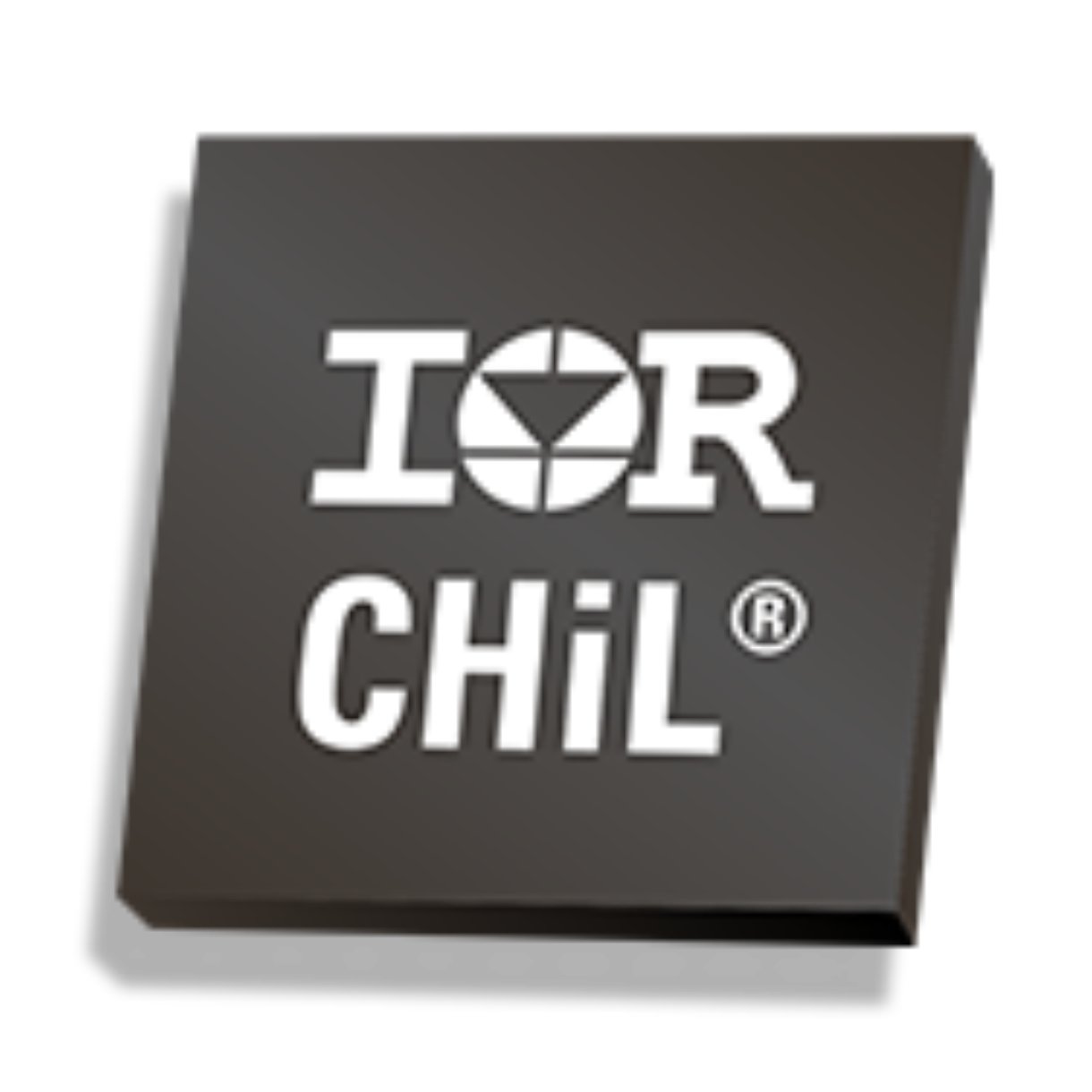

CHL8103-01CRT

Dual Loop, 3+1 multiphase VR12/AMD PWM for high efficiency, cost effective solutions

Benefits:

.

Dual output 2/3/4+1 phase PWM ControllerCHL8103/04

.

Footprint compatible with CHL8112A/B CHL8103/4

.

Fully supports Intel® VR12 CHL8103/04

.

Fully supports AMD® SVI with dual OCP and programmable addressing CHL8103/04

.

Easiest layout and fewest pins in the industry

.

I2C interface for configuration and telemetry

.

Pin programmable I2C address CHL8103/04

.

Overclocking support with I2C voltage override and Vmax setting

.

Flexible I2C bus security features

.

I2C security enable pin CHL8103/04
