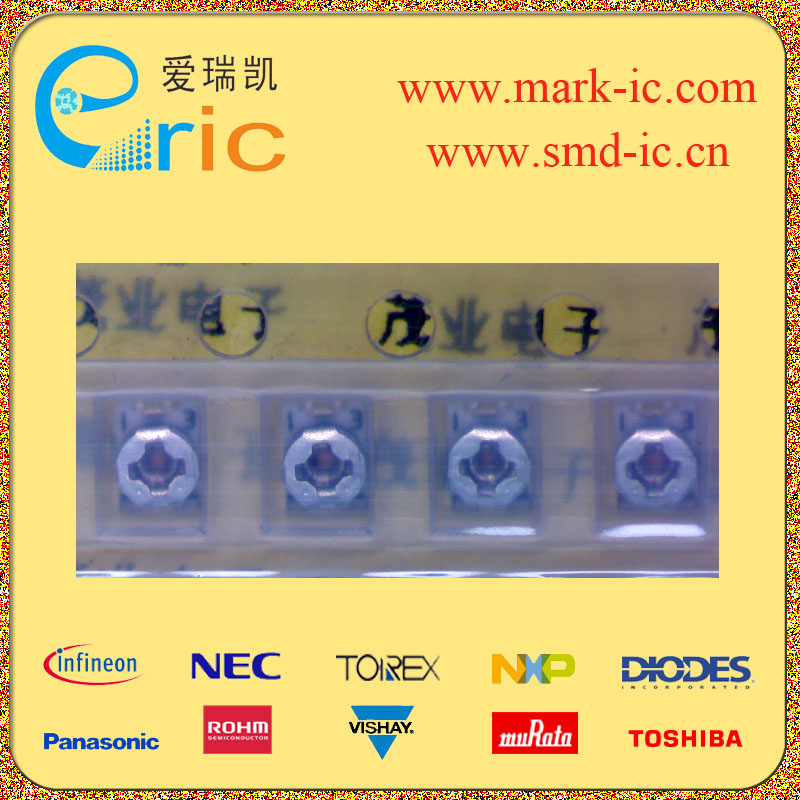

MVR22HXBRN103

MVR22HXBRN103 10KΩ/Ohm 2X2-10K marking/标记 14

值Resistance | 10KΩ/Ohm \---|--- 额定功率Power | 0.05W，1/20W 容差Tolerance | ±25% 温度系数Temperature Coefficient | ±100ppm/°C 圈数Number of Turns | 单圈 Single 调节类型Adjustment Type | 顶部调节 Top Adjustment 端子类型Termination Style | J引线 J Lead Description & Applications | Chip trimmer potentiometers Features 1 Extremely small size and light weight facilitate the assembly of light, thinner, and smaller equipment. 2 Close match between wiper and resistive element reduces wiper noise. 3 Ruthenium oxide resistor material, with superb stability and resistance to humidity and the elements, offers the same outstanding reliability of our existing product MVR32. 4 Smoother and larger suction surface offers the same ease of mounting as that of the MVR32 chip. 5 Open design for reflow soldering. 6 Cross groove for easy adjustment. 7 Protective film prevents short circuits due to terminal contact. 8 The wiper is fully rotated during testing to guarantee its performance. 描述与应用 | 贴片微调电位器 1）体积小，重量轻，便于组装轻，更薄，更小的设备。 2）缩小微调和电阻元件之间隙，噪音降低。 3）氧化钌电阻材料，具有极好的稳定性和耐湿性的元素，提供 我们现有的产品同样出色的可靠性 （MVR32）。 4）平滑和更大的吸力面提供了相同的易于安装的的MVR32芯片。 5）开放式设计回流焊。 6）十字槽，便于调节。 7）保护膜防止短路，由于终端接触。 8）微调完全在测试过程中旋转，以保证其性能。
