0039301121

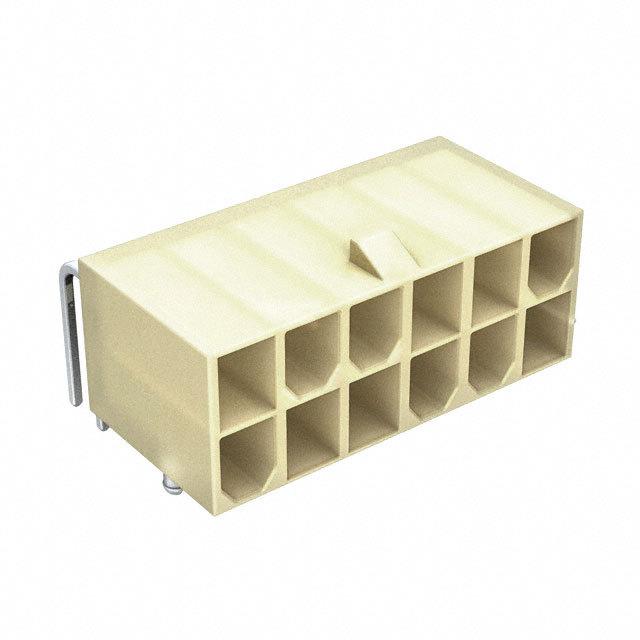

4.20毫米( .165 “ )间距迷你小飞度™插头,双排,直角,以管理单元塑料栓锁电路板,电路12 ,PA聚酰胺尼龙6/6 94V - 2 , 0.76μm ( 30μ ” )金(Au )镀层 4.20mm .165" Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 12 Circuits, PA Polyamide Nylon 6/6 94V-2, 0.76μm 30μ" Gold Au Plating

Connector Header Through Hole, Right Angle 12 position 0.165" 4.20mm


得捷:
CONN HEADER R/A 12POS 4.2MM


艾睿:
Whether you have an AC or DC power entry module, this 0039301121 power connector from Molex comes in a variety of types to support all sorts of modules. This HDR connector&s;s 12 contacts that are made out of brass alloy and plated with gold over nickel. Its pitch is 4.2 mm. It has a header type gender. This connector has a single port. It has a maximum voltage rating of 600 V. It has a right angle body orientation. 0039301121 is housed in polyamide 6/6. This device has a maximum current rating of 13 A/contact. This product is 26.4 mm long and 19.4 mm. This power connector has an operating temperature range of -40 °C to 105 °C. Its 12 terminals use the solder termination method.


Verical:
Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Mini-Fit Jr™ Bag
