ST26C31BD

CMOS四路三态差分线路驱动器 CMOS QUAD TRI-STATE DIFFERENTIAL LINE DRIVER

Description

The ST26C31B is a quad differential line driver designed for digital data transmission over balanced lines and meets all the requirements of EIA standard RS-422 while retaining the low power characteristics of CMOS.

Features

■ TTL input compatible

■ Typical propagation delay: 6 ns

■ Typical output skew: 0.5 ns

■ Output will not load line when VCC= 0 V

■ Meets the requirements of EIA standard RS-422

■ Operation from single 5 V supply

■ 3-state outputs for connection to system buses

■ Low quiescent current

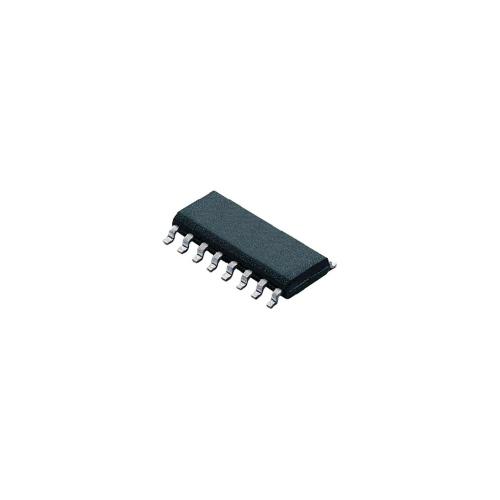

■ Available in surface mount
