ALD1103SBL

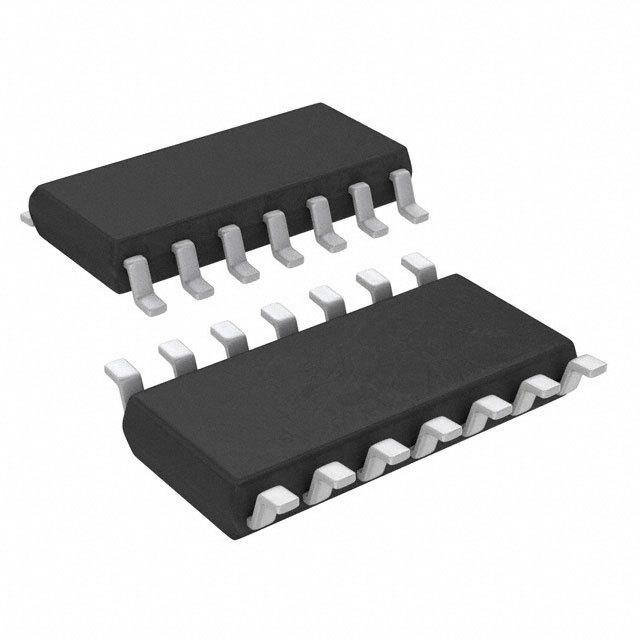

SOIC N+P 10.6V

GENERAL DESCRIPTION

The ALD1103 is a monolithic dual N-channel and dual P-channel matched transistor pair intended for a broad range of analog applications. These enhancement-mode transistors are manufactured with " enhanced ACMOS silicon gate CMOS process. It consists of an ALD1101 N-channel MOSFET pair and an ALD1102 P-channel MOSFET pair in one package.

FEATURES

• Thermal tracking between N-channel and P-channel pairs

• Low threshold voltage of 0.7V for both N-channel & P-channel MOSFETS

• Low input capacitance

• Low Vos -- 10mV

• High input impedance -- 1013 Ω typical

• Low input and output leakage currents

• Negative current IDS temperature coefficient

• Enhancement mode normally off

• DC current gain 109

• Matched N-channel and matched P-channel in one package

• RoHS compliant
