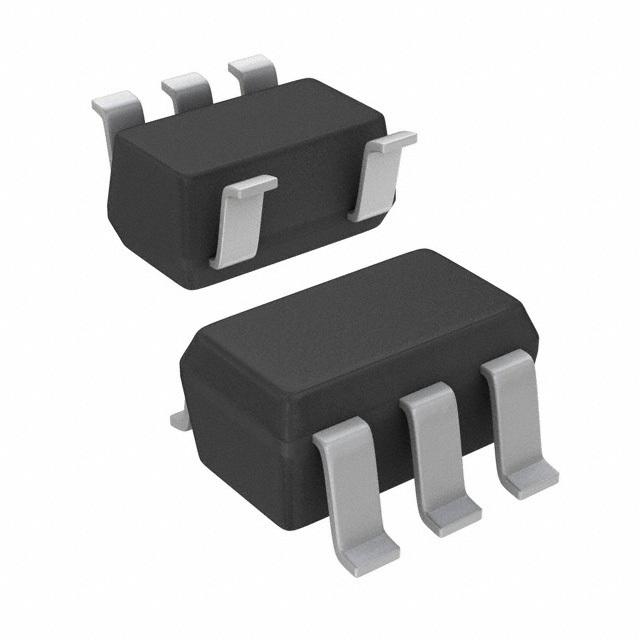

TL343IDBVTE4

单一的低功耗运算放大器 SINGLE LOW-POWER OPERATIONAL AMPLIFIER

description/ordering information

The TL343 is a single operational amplifier similar in performance to the µA741, but with several distinct

advantages. It is designed to operate from a single supply over a range of voltages from 3 V to 30 V. Operation from split supplies also is possible, provided the difference between the two supplies is 3 V to 30 V. The common-mode input range includes the negative supply. Output range is from the negative supply to VCC − 1.5 V.

Wide Range of Supply Voltages, Single Supply 3 V to 30 V, or Dual Supplies

Class AB Output Stage

True Differential-Input Stage

Low Input Bias Current

Internal Frequency Compensation

Short-Circuit Protection
