MAX203EPP+G36

MAXIM INTEGRATED PRODUCTS  MAX203EPP+G36  芯片, RS232 收发器, 116KBPS, 5.25V, DIP-20

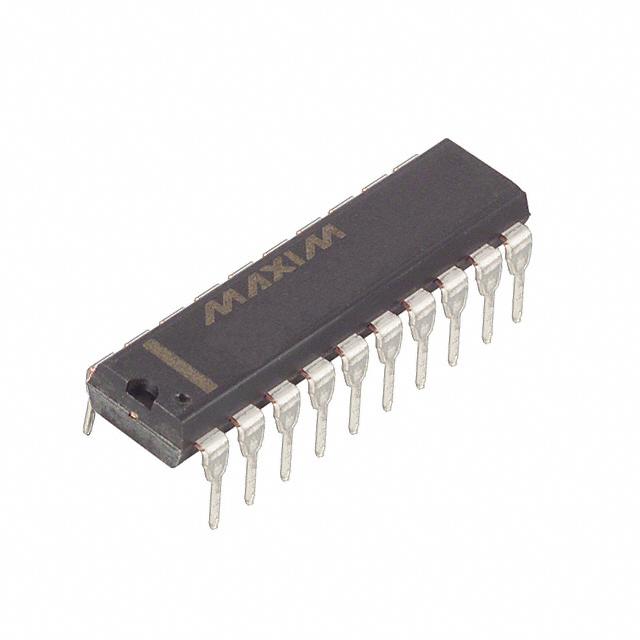

The is a ±15KV ESD protected, +5V RS232 transceiver in 20 pin DIP package. It is a RS232 and V.28 transceiver with high ±15KV ESD HBM Human Body Model protection and integrated charge pump circuitry for single 5V supply operation. This transceiver meets all EIA/TIA232E and CCITT V.28 specifications at data rate up to 120Kbps when loaded. It does not require external charge pump capacitors. This device is typically used in battery powered equipment.

.

Two drivers and two receivers

.

Supply voltage range from 4.75V to 5.25V

.

Operating temperature range from -40°C to 85°C

.

Supply current is 8mA

.

Integrated 0.1µF capacitors

.

Saves board space

.

Saves power for reduced power requirement
