S8-2405U

CYNERGY3  S8-2405U.  SPST n/o 5kV Isolation 24V Coil UL 98Y7659 新

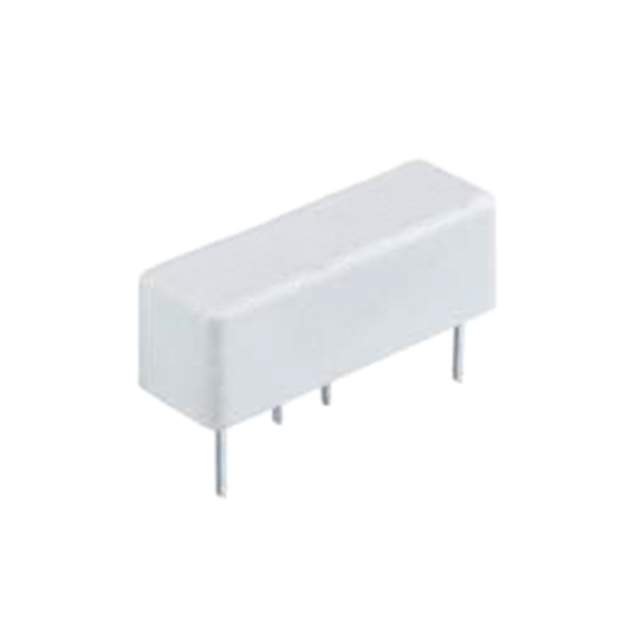

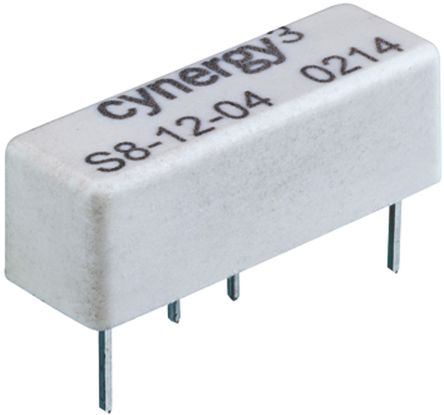

The from Cynergy3 is an UL approved miniature high voltage reed relay. The S8 UL series is a miniature high voltage reed relay for applications where space saving is a prime consideration. The coil pins are positioned near the centre of the relay while the contact pins are near the ends to give improved isolation between the high voltage contacts and the low voltage coil.

.

SPST form A contact configuration, coil voltage is 24VDC

.

Switching power is 100VA, switching voltage is 350VDC/300VAC, switching current is 1A

.

Isolation voltage across contacts is 5KV

.

Rhodium material

.

Carry current is 2.5A

.

Isolation between contact /coil is 7KV

.

Operating temperature range from -40°C to +85°C

.

Coil resistance is 1550 ohm

.

Contact resistance is 150mohm
