9HV0412P3K001

SANYO DENKI - SANACE FANS  9HV0412P3K001  轴流风扇, San Ace 40 9HV系列, 12 VDC, 40 mm, 28 mm, 29.3 cu.ft/min, 0.83 m³/min

The San Ace 40 9HV series 9HV type DC Fan provides efficient cooling for devices with high quality and high reliability, overheating protection function. If the fan blades are restricted, an over-current occurs and leads to a rise in the fan coil temperature. This can result in reduced performance, damage or a fire. To prevent this from occurring, SANYO DENKI"s fans incorporate an overheating protection function. If the fan blades are restricted, the coil current is cut off at regular cycles to prevent overheating of the coil. When the hindrance is removed, the fan restarts automatically. No problem about fan even if positive and negative leads are connected in reverse. However, when wiring fans with sensors or PWM speed control function, connecting positive and negative leads in reverse may damage the fans.

.
Burnout protection function at locked rotor condition
.
Reverse polarity protection function
.
10MR at 500VDC Insulation resistance
.
UL94V-0 Flammability rated plastic impeller and aluminium frame
.
40000/60°C Hours expected life

9HV0412P3K001 PDF数据文档
图片 型号 厂商 下载
9HV0412P3K001 Sanyo Semiconductor 三洋
9HV0912P1G001 Sanyo Denki 山洋電气
9HV0948P1G001 Denki
9HV0812P1G001 Sanyo Semiconductor 三洋

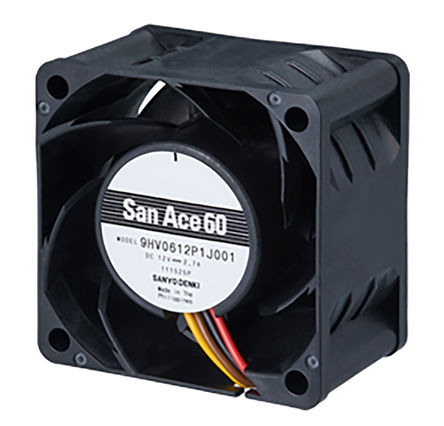

9HV0612P1J001 Sanyo Denki 山洋電气
