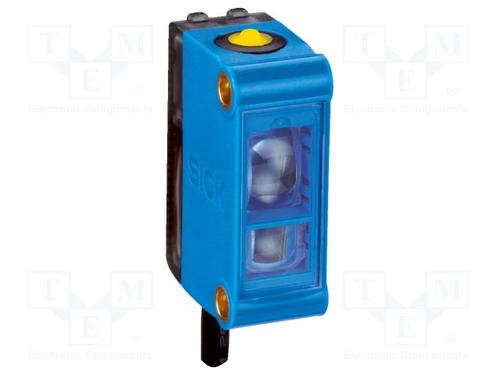

CSM-WP11122P

色彩传感器, LED, RGB, 12.5 mm, 矩形, PNP, 12至24 Vdc

The new CSM color sensor from SICK offers improved gloss behavior combined with an IO -Link function and a miniature housing. The CSM is ideal for applications where color characteristics need to be detected reliably and installation space is at a premium. The sensor detects and monitors objects on the basis of their color. The small CSM color sensor can be set using a simple teach-in method, while the new IO -Link function enables intelligent diagnostics, visualization of sensor parameters, and straightforward format changes. Thanks to a switching frequency of up to 1.7 kHz, the CSM is also suitable for use with high-speed machines and manufacturing processes.

**Features**

* Color Sensor in a New Miniature Housing

* Static and Teach-In Method for 1 Color Using Control Cable or Control Panel

* Over IO -Link Up to 8 Colors Teachable

* Switching Frequency: 1.7 kHz

* Sensing Distance: 12.5 mm

* Compatibility with Older Color Sensors Thanks to Cable with Male Connector M12
