PME271YB5100MR19T0

等级:Y2 10nF ±20% 300VAC

10000pF Film Capacitor 300V 1000V 1kV Paper, Metallized Radial

得捷:
CAP FILM 10000PF 20% 1KVDC RAD

立创商城:
等级:Y2 10nF ±20% 300VAC

贸泽:
Film Capacitors 300volts 0.01uF 20% LS 15.2mm

艾睿:

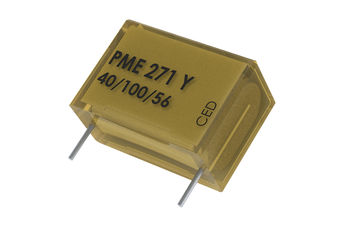

This emi suppression PME271YB5100MR19T0 film capacitor from Kemet is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 1000 VDC|300VAC. This part has a maximum operating temperature of 115 °C. This product is 18.5Max mm long, 10.5Max mm tall and 5.2Max mm deep. This part has a lead diameter of 0.8 mm and a pitch of 15.2 mm. It has a tolerance of 20%. The PME271YB5100MR19T0 part has a radial termination style. Its capacitance value is 0.01uF.

安富利:
Cap Paper 0.01uF 1000V 20% 18.5 X 5.2 X 10.5mm Radial 15.2mm 115°C T/R

Chip1Stop:
Cap Film Suppression Y2 0.01uF 1000VDC/300VAC Paper 20% 18.5 X 5.2 X 10.5mm Radial 15.2mm 115C T/R

Verical:
Cap Film Suppression Y2 0.01uF 1000VDC/300VAC Paper 20% 18.5 X 5.2 X 10.5mm Radial 15.2mm 115C T/R
