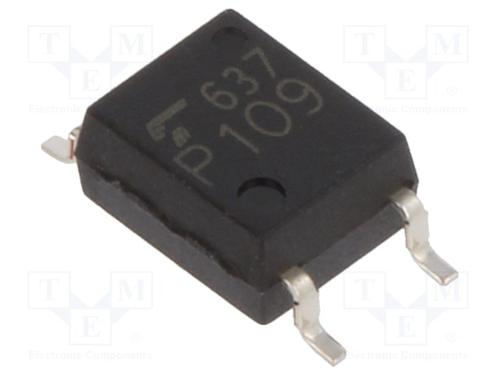

TLP109EO

TOSHIBA  TLP109EO  光电耦合器, 晶体管输出, 1通道, SOIC, 5 引脚, 20 mA, 3.75 kV, 20 %

The is a 1-channel 5-pin Mini Flat Coupler suitable for surface-mount assembly. It consists of a high-output-power GaAlAs light emitting diode optically coupled to a high-speed photodiode-transistor chip. It meets the reinforced insulation class requirements of international safety standards. It is suitable for programmable controllers and industrial inverters.

.

>=5mm Creepage distance

.

>=5mm Clearance

.

>=0.4mm Insulation thickness

.

-55 to 125°C Operating temperature range
