MAX16903RAUE33/V+

MAXIM INTEGRATED PRODUCTS  MAX16903RAUE33/V+  芯片, 直流/直流控制器

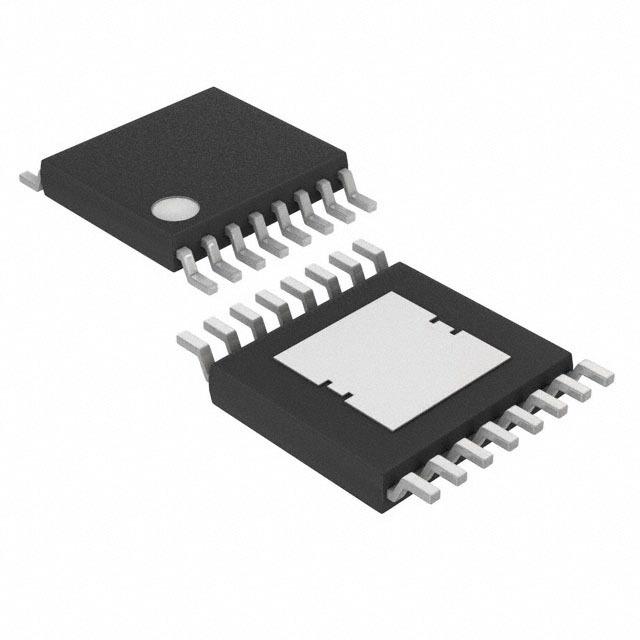

The is a high voltage, current mode mini buck converter in 16 pin TSSOP package. This small, synchronous converter integrates high and low side FETs. The device is designed to deliver 1A output current with input voltages from 3.5V to 28V while using only 25µA quiescent current at no load. Voltage quality can be monitored by observing the PGOOD signal. The MAX16903 can operate in dropout by running at 97% duty cycle and operates at 2.1MHz frequency which allows for small external components and reduced output ripple. The device does not provide AM band interference. SYNC input programmability enables three frequency modes for optimized performance such as forced fixed frequency operation, skip mode ultra low quiescent current of 25µA and synchronization to an external clock. It is used in high voltage input power DC to DC applications.

.

Automotive AEC-Q100 grade 1 qualified

.

Automotive temperature range from -40°C to 125°C

.

Output voltage of 3.3V

.

3.5V to 28V input voltage range allows operation in cold crank conditions

.

Tolerates input voltage transients to 42V

.

Enable pin compatible from 3.3V logic level to 42V

.

Increased efficiency, reduced BOM cost and board space

.

High switching frequency allows use of small, low cost external components

.

Low quiescent current helps designers to meet stringent OEM current requirements

.

Reduced EMI emissions at switching frequency and external frequency synchronization
