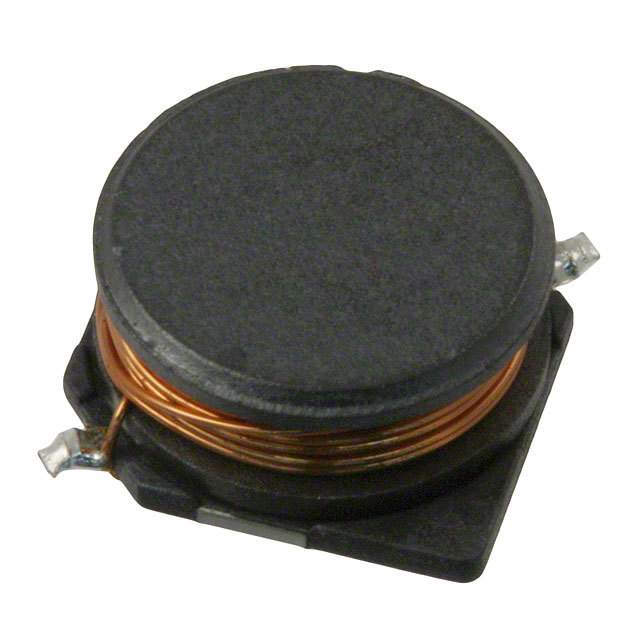

SDR1045-100M

SMD功率电感 SMD Power Inductors

无屏蔽 绕线 器 64 毫欧最大 非标准

立创商城:
10uH ±20% 3.2A 64mΩ

得捷:
FIXED IND 10UH 3.2A 64 MOHM SMD

艾睿:
This power SDR1045-100M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 10.3 mm long, 4.8 mm tall and 10.3 mm deep. It has an inductance of 10u H. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 27.8M Hz. This SMD inductor has a maximum DC current of 3.2 A with a maximum resistance of 64m Ohm. This device utilizes wirewound technology.

安富利:
Ind Power Wirewound 10uH 20% 100KHz 26Q-Factor Ferrite 3.2A T/R

Verical:
Inductor Power Wirewound 10uH 20% 100KHz 26Q-Factor Ferrite 3.2A 0.064Ohm DCR T/R

Win Source:
FIXED IND 10UH 3.2A 64 MOHM SMD / 10 µH Unshielded Drum Core, Wirewound Inductor 3.2 A 64mOhm Max Nonstandard
