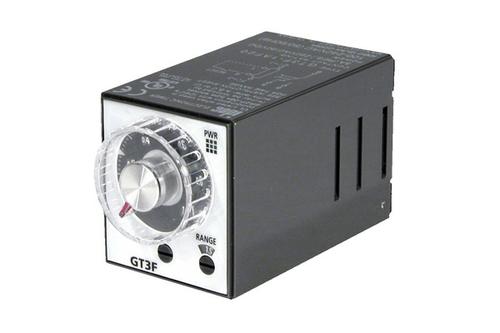

GT3F-2AF20

IDEC  GT3F-2AF20  定时器/计数器, 面板显示, 0.05-600秒

**Specifications:** **Input Voltages:** 100-240 VAC; 12 VAC/VDC; 24 VAC/VDC. **Contact Configurations:** Delayed SPDT, delayed DPDT, delayed SPDT + instantaneous SPDT, solid state. **Contact Load Ratings Maximum:** 250 VAC/5 A, 30 VDC/5 A. **Insulation Resistance:** 100 MΩ, minimum. **Time Ranges:** GT3A — 0.05 seconds to 180 hours; GT3F — 0.05 seconds to 10 minutes. GT3W — 0.5 seconds to 6 hours. **Reset Time:** 60 mSec., maximum. **Life Expectancy:** Electrical — 100,000 operations, Mechanical — 20,000,000 operations. **Termination:** 8-pin. **Features:**

* Compact Size: 1.42" × 1.57" 36 mm × 40 mm Wide

* Three Basic Series: GT3A Multi-Mode, On-Delay, Interval Cycle, On-Start or Off-Start; GT3W Dual Time Range Sequential Start, On-Delay One Shot, Recycler and 5 Other; GT3F “True” Off-Delay

* Repeat Accuracy: ±0.2%, ±10 mSec

* POWER On and Timing OUT LED Indicators

* Choice of Power Voltage Range: 100-240 VAC, 12 VDC and 24 VAC/VDC

* All Timers Compatible with "s 8-Pin and 11-Pin DIN Rail, Panel-Mount Sockets; Optional Panel-Mount Adapter Available

* UL Listed, CE Marked
