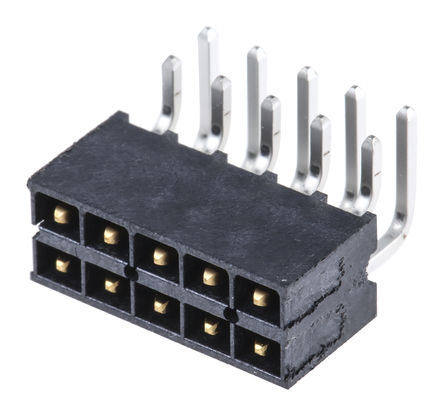

IPT1-105-01-L-D-RA

Shrouded 2.54mm PCB Isolated Power Terminals - IPT1 SeriesIPT1 series Mini Mate® board to board shrouded PCB isolated power header terminals with a 2.54mm pitch and a height of 11.05mm when mated. These IPT1 series board to board PCB isolated power headers have a double row of Rugged™ individually shrouded 0.25μm gold plated phosphor bronze contacts set inside a black glass LCP insulator. The temperature range at which these IPT1 series board-to-board through hole power header terminals can be used is -55 to +125°C with a maximum power rating of 9A at an ambient temperature of 20°C. Part numbers IPT1-1XX-01-L-D are straight through hole mount Part numbers IPT1-1XX-01-L-D-RA are right angle through hole mount### 注These board to board shrouded PCB power header terminals mate with the IPS1 series shrouded PCB power sockets - see stock number 767-6840 typically.### Samtec 2.54mm Power Terminals and Sockets

Shrouded 2.54mm PCB Isolated Power Terminals - IPT1 Series

IPT1 series Mini Mate® board to board shrouded PCB isolated power header terminals with a 2.54mm pitch and a height of 11.05mm when mated. These IPT1 series board to board PCB isolated power headers have a double row of Rugged™ individually shrouded 0.25μm gold plated phosphor bronze contacts set inside a black glass LCP insulator. The temperature range at which these IPT1 series board-to-board through hole power header terminals can be used is -55 to +125°C with a maximum power rating of 9A at an ambient temperature of 20°C.

Part numbers IPT1-1XX-01-L-D are straight through hole mount

Part numbers IPT1-1XX-01-L-D-RA are right angle through hole mount

### 注

These board to board shrouded PCB power header terminals mate with the IPS1 series shrouded PCB power sockets - see stock number 767-6840 typically.

### 2.54mm Power Terminals and Sockets

IPT1-105-01-L-D-RA PDF数据文档
图片 型号 厂商 下载
IPT1-105-01-L-D-RA Samtec 申泰电子
IPT1-115-01-S-D-RA Samtec 申泰电子
IPT1-115-01-S-D Samtec 申泰电子
IPT1-110-01-S-D Samtec 申泰电子
IPT1-106-01-S-D-RA Samtec 申泰电子
IPT1-118-01-S-D-RA Samtec 申泰电子
IPT1-110-01-S-D-RA Samtec 申泰电子
IPT1-105-01-S-D Samtec 申泰电子
IPT1-125-06-S-D Samtec 申泰电子
IPT1-125-08-S-D Samtec 申泰电子
IPT1-125-01-S-D-VS Samtec 申泰电子
