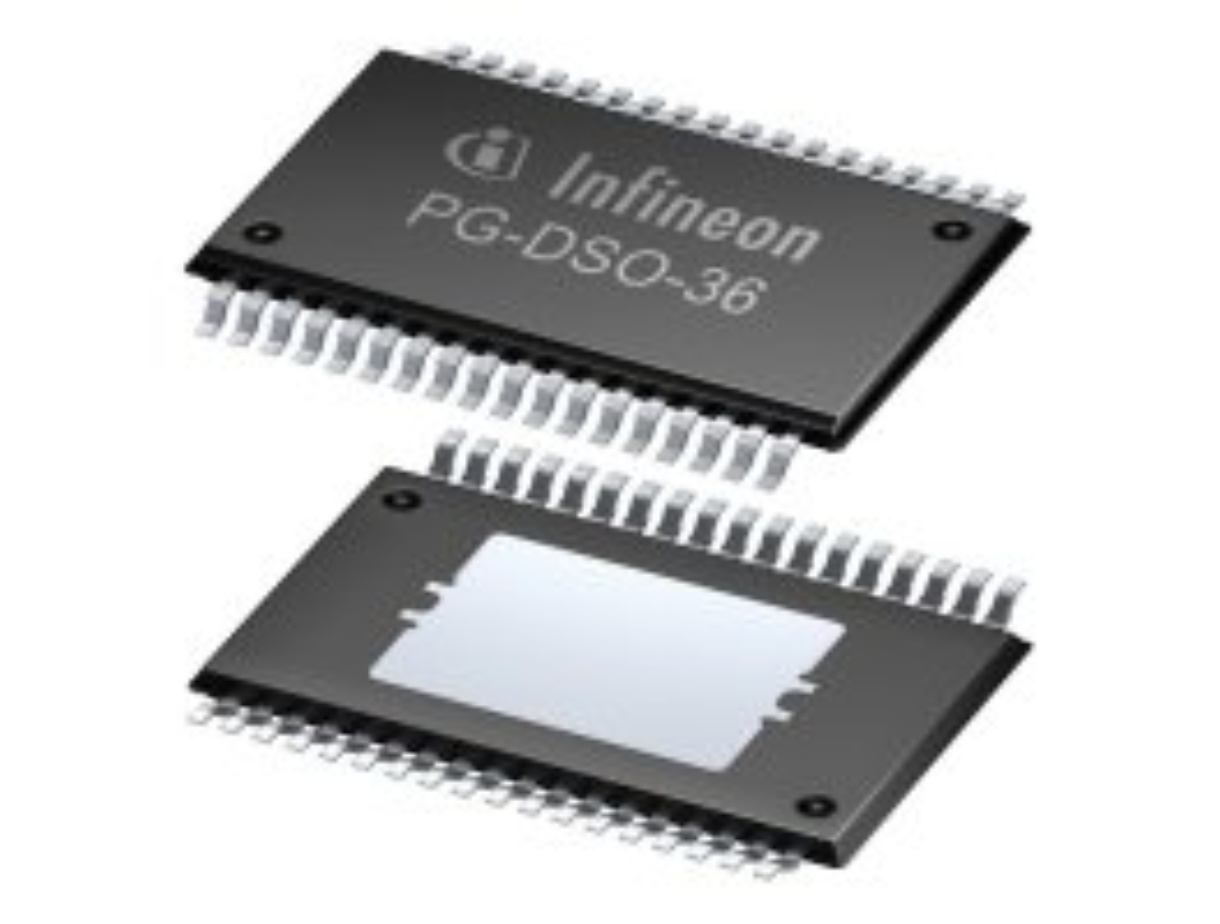

TLE8718SA
2 x 270 & 2 x 450 & 8 x 720 & 2 x 470 & 4 x 1300mΩ通态电阻,十八通道,智能低边开关
Description:
Smart 18-channels Low-Side Switch in Smart Power Technology. The is the most advanced Low-Side Switch designed for Powertrain applications. It"s equipped with the Micro Second Channel MSC communication interface for High Speed control and diagnosis. All channels are protected against over-current/temperature and enhanced with an active clamping circuitry for driving inductive loads. Load status detection is possible over the MSC for: Short to GND SCG, Open Load OL, and Short to Battery SCB.
Summary of Features:
- .
- 23MHz Micro Second Channel
- .
- 2x Low-Voltage operation channels Main Relay
- .
- Active Clamping
- .
- Supply Voltage Monitoring
- .
- Bi-Directional Reset-Pin ABE
- .
- Dedicated Delayed Disable for Injectors DIS5_10
- .
- Diagnosis for SCG, OL and SCB
- .
- Selectable Over-Current Protection I-limit/switch-off
- .
- Short Circuit Protection up to 36V
- .
- Battery Over-Voltage Protection
- .
- Over-Temperature Protection
- .
- Over-Temperature Warning
- .
- Electrostatic Discharge ESD Protection
- .
- Low Quiescent Current Mode Standby
- .
- Green Product RoHS compliant
- .
- AEC Qualified
Benefits:
- .
- High Current Capability
- .
- Inductive Load Clamping
- .
- Optimized for High-End Engines
- .
- Efficient Power Package
- .
- Full Protection
- .
- Full Diagnosis
- .
- MSC High-Speed communication
