MAX320EUA+

MAXIM INTEGRATED PRODUCTS  MAX320EUA+  模拟开关, 精准, SPST - 常开, 2 放大器, 35 ohm, ± 2.7V 至 ± 8V, µMAX, 8 引脚

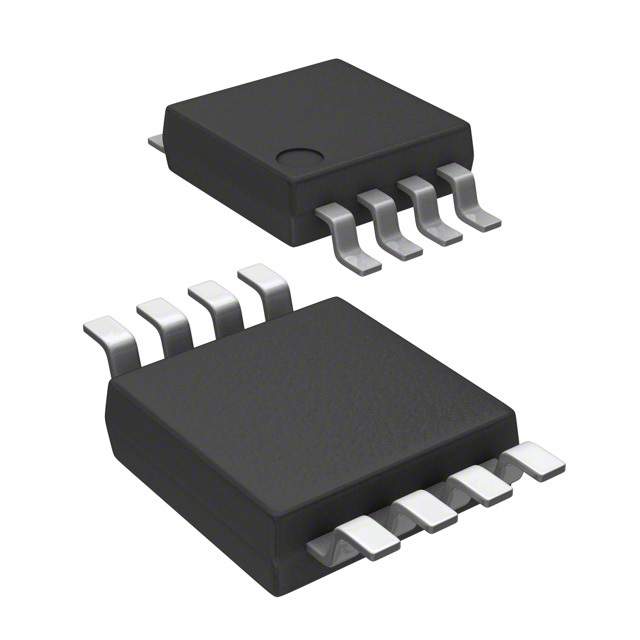

The is a precision, dual supply, SPST analogue switch in 8 pin µMAX package. It has two normally open NO switch and low power consumption of 1.25mW makes part ideal for battery powered equipment. It offer low leakage current of 100pA max and fast switching speeds tON = 150ns max, tOFF = 100ns max. It offers 35ohm max on-resistance RON, 2ohm max matching between channels and 4ohm max RON flatness. It also offers 5pC max charge injection and a minimum of 2000V ESD protection per method 3015.7. It is used battery operated systems, heads-up displays, test equipment, ±5V DACs and ADCs, sample and hold circuits, guidance and control systems, military radios, audio/video signal switching, communications systems and PBX, PABX.

.

Supply voltage range is ±2.7V to ±8V

.

Operating temperature range from -40°C to 85°C

.

Low on-resistance of 35ohm max & 16ohm typ

.

RON matching between channels is <2ohm

.

RON flatness is < 4ohm

.

Charge injection is < 5pC

.

Low leakage current over temperature is < 2.5nA at +85°C
