RI-46B

SWITCH, REED, SPST-NO, 3A, 200VDC; Contact Configuration:SPST-NO; Switching Voltage Max:200VDC; Switching Power Max:40W; Contact Current Max:500mA; Contact Resistance Max:90mohm; Product Range:RI-46 Series; Body Length:20.5mm ;RoHS Compliant: Yes

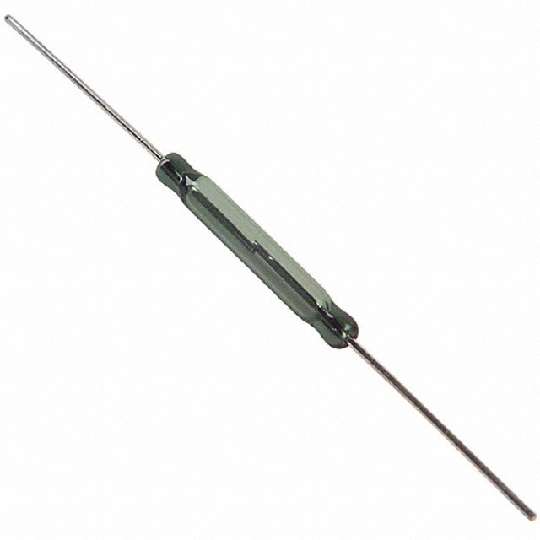

The RI-46 series Micro Dry Reed Switch hermetically sealed in a gas-filled glass envelope. It is single-pole single-throw SPST type having normally open contacts and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in relays, sensors, pulse counters or similar devices.

.

Can switch main voltage

.

Can handle up to 40W load

.

Sputtered ruthenium-plated gold contact layers

.

Superior glass-to-metal seal and blade alignment

.

Excellent life expectancy and reliability
