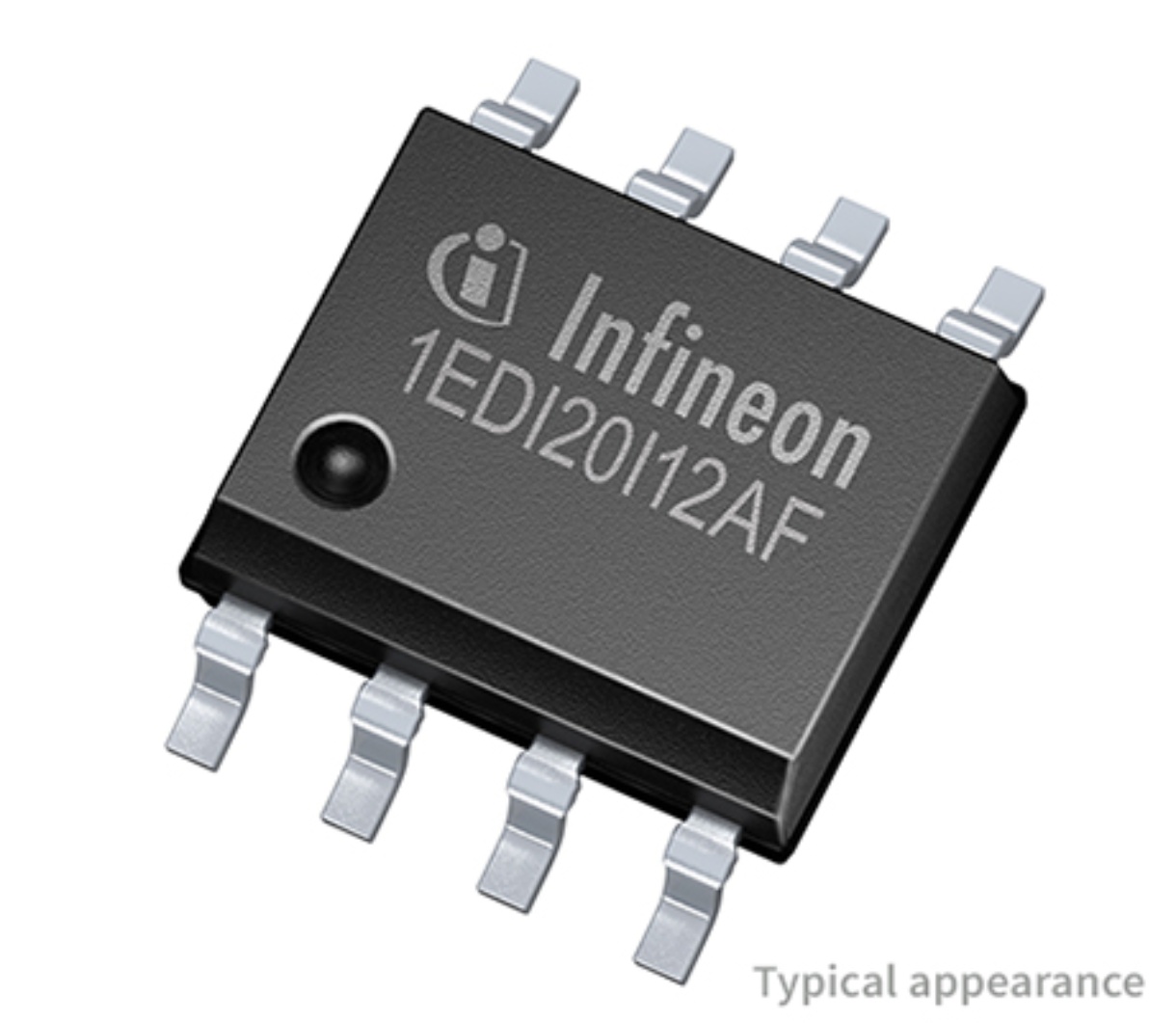

1EDI20I12AF

单独的输出变量的IGBT Separate output variant for IGBT

Description

The 1EDI05I12AF, , 1EDI40I12AF, and 1EDI60I12AF are galvanically isolated single channel IGBT driver in a PG-DSO-8-51 package that provide output currents up to6 A at separated output pins. The input logic pins operate on a wide input voltage range from 3 V to 15 V using CMOS threshold levels to support even 3.3 V microcontroller.

Data transfer across the isolation barrier is realized by the Coreless Transformer Technology.

Every driver family member comes with logic input and driver output under voltage lockout UVLO and active shutdown.
