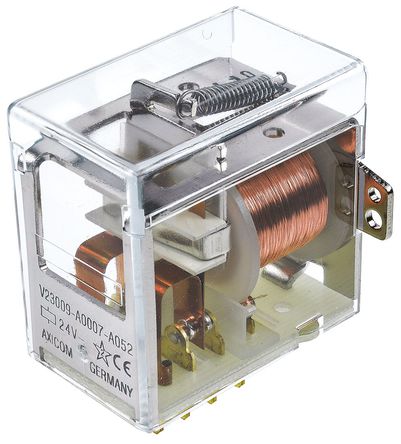

V23009A 7A 52
V23009 系列电源继电器中性直接电压继电器，单稳态 连接，带插片式接线端子，4.8 mm 或 6.3 mm 螺钉固定的附件 Contact material | Silver-Nickel ---|--- Contact assignment | 3 changers Contact load: | Max switching voltage: | 300 Vdc / 250 VAC Max. switching current: 1 | 20 A Limiting continuous current, max. | 8 A Max. switching capacity: 2 | → 24 Vdc: 360 W | 40 Vdc: 140 W | 60 Vdc: 80 W | 250 Vdc: 100 W | 250 VAC: 5 kVA Selection guide --- Tyco Electronics | Nom. voltage | DC Description | | Coil resistance at 25 °C ±10 % 3 changers | | V23009-A7-A101 | 24 Vdc | 300 Ω 1 The 40 A current can be run up to a relative ON duration of 10% for a maximum of 4 s. 2 The figures refer to resistive load or to inductive load with appropriate spark suppression, determined by 2 switching cycles. ### 电源继电器
V23009 系列电源继电器
中性直接电压继电器，单稳态
连接，带插片式接线端子，4.8 mm 或 6.3 mm
螺钉固定的附件
Contact material | Silver-Nickel
---|---
Contact assignment | 3 changers
Contact load: |
Max switching voltage: | 300 Vdc / 250 VAC
Max. switching current: 1 | 20 A
Limiting continuous current, max. | 8 A
Max. switching capacity: 2 | → 24 Vdc: 360 W
|
40 V 直流：140 W
|
60 V 直流：80 W
|
250 V 直流：100 W
|
250 V 交流：5 kVA
Selection guide
---
Tyco Electronics | Nom. voltage | DC
Description | | Coil resistance at 25 °C ±10 %
3 changers | |
V23009-A7-A101 | 24 Vdc | 300 Ω
最大值 4 秒的百分比。
