UBS-100

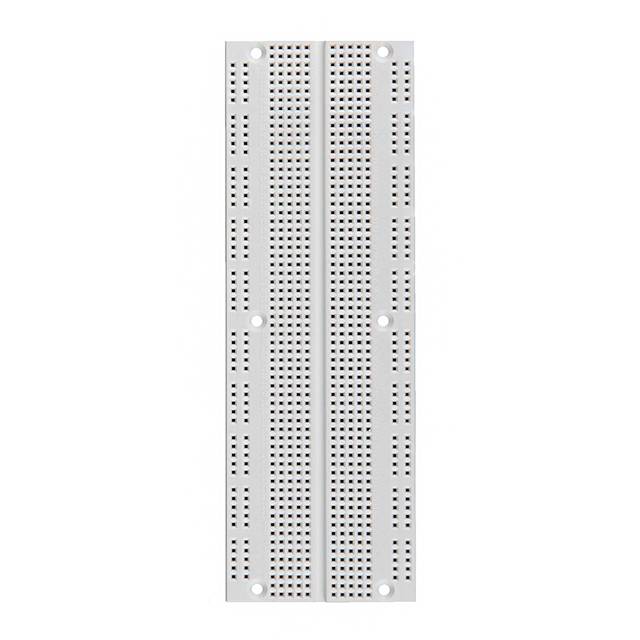

GLOBAL SPECIALTIES  UBS-100  原型开发板

The is largest single breadboard. The UBS-100 offers multiple bus strips and large socket area with 840 tie points. A permanent molded-in tie point numbering system allows the user to see at a glance where to tie wires and add connections. Each socket is made of durable polystyrene and nickel-silver contacts for the highest quality circuit connections. The UBS-100 comes with a heavy-duty Mylar backing to prevent short circuits
.
*

Features

* **Unlimited expansion**

* **Heavy-duty Mylar back prevents shorting **

* **Combines bus strip with breadboard **

* **0.3 inch/0.6 inch center channels **

* **Replaceable nickel-silver spring clip contacts **

* **Accepts all components with leads up to 0.033 inches **

* **Combines additional boards for larger breadboarding areas **

* **Molded-in mounting holes permit front mounting to backplate or other surface with 4-40 flat head screws—rear mounting with #6-32F self-tapping screws

UBS-100 PDF数据文档
图片 型号 厂商 下载
UBS-100 Global Specialties
