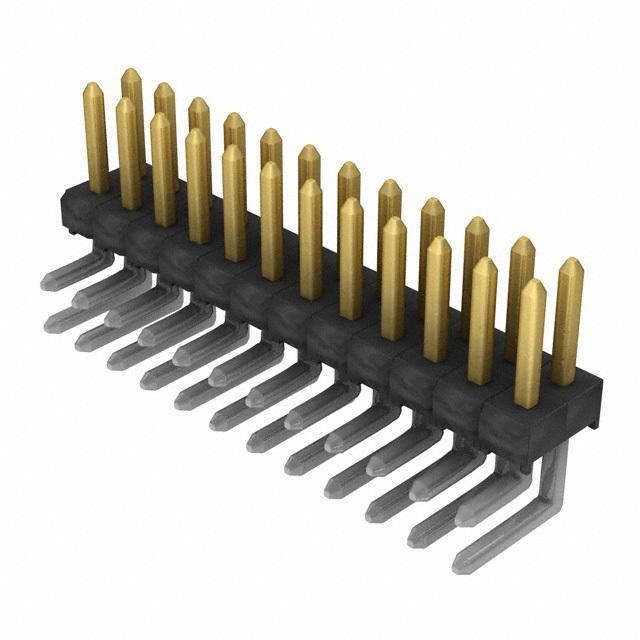

TSW-112-08-S-D-RA

Conn Unshrouded Header HDR 24POS 2.54mm Solder RA Thru-Hole

针座 通孔，直角 24 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 24POS 2.54MM

欧时:
through-hole hdr strips for 0.100 pit

艾睿:
Protect your printed circuit boards from accidental damages with Samtec&s;s unshrouded TSW-112-08-S-D-RA header connector. This HDR connector&s;s 24 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a right angle body orientation. It has a maximum voltage rating of 450 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. TSW-112-08-S-D-RA is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. This product is 30.48 mm long, 5.56 mm tall and 12.44 mm deep.

安富利:
Conn Unshrouded Header HDR 24 POS 2.54mm Solder RA Thru-Hole

Newark:
# SAMTEC  TSW-112-08-S-D-RA  .025 Sq. Terminal Strips
