TC7SH08FU

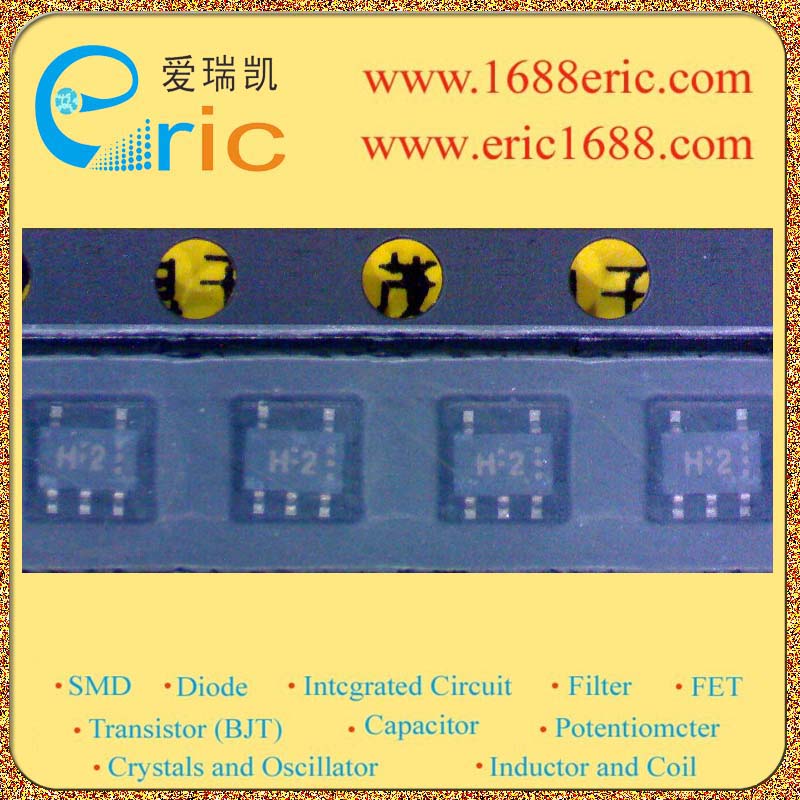

IC 与门 TC7SH08FU SOT-353/USV marking/标记 H2

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2v~5.5v 静态电流IqCurrent - Quiescent Max| 2uA 输出高，低电平电流Current - Output High, Low| -8mA,8mA 低逻辑电平Logic Level - Low| 0.5V 高逻辑电平Logic Level - High| 1.5V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 7.9ns @4.5V~5.5V ，50pF Description & Applications| 2-Input AND Gate ；• High speed operation : tpd = 4.3ns typ. at VCC = 5V, 15pF • Low power dissipation : ICC = 2 μA max at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC min • 5.5-V tolerant inputs • Wide operating voltage range : VCC = 2 to 5.5 V 描述与应用| 2输入与门;•高速运行：TPD =4.3ns（典型值），VCC = 5V时，15PF •低功耗：ICC= 2μA（最大值）在大= 25°C •高噪声，免疫力：VNIH= VNIL=28％VCC（分钟） •5.5-V宽容输入 •宽工作电压范围：VCC=2至5.5 V
