TANGO40/X/NTYPEF/S/S/32

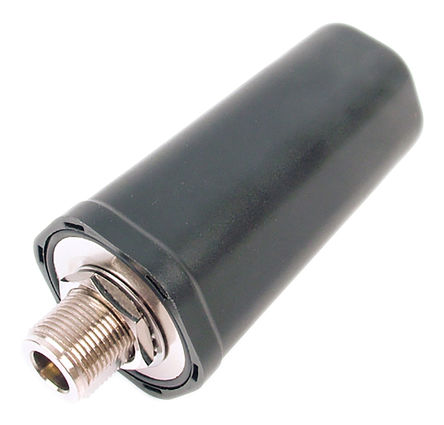

TANGO 40 - 4G/3G/2G/WiFi Bolt Through Antenna, SirettaThe TANGO 40 is a 4G/WiFi antenna which is equally capable of 3G and 2G frequencies. It can be positioned onto most surfaces including those which are not flat using it integral rubber washer.SWR: Radiation: Omnidirectional Polarisation: Vertical **Frequency bands:** 698 MHz to 960 MHz @ 1 dBi gain 1710 MHz to 2170 MHz @ 3 dBi gain 2300 MHz to 2700 MHz @ 5 dBi gain **Mechanical information:** 39.8 mm diameter 77.9 mm length N type jack stud for mounting the antenna 16 mm diameter hole required for stud Max thickness of material to be mounted to - approximately 5 mm Rubber gasket provides reliable water sealing to mounted surface ### 多频段天线

829MHz，1.94GHz，2.5GHz WLAN 鞭状，直形 RF 天线 698MHz ~ 960MHz，1.71GHz ~ 2.17GHz，2.3GHz ~ 2.7GHz - N 型母头 面板安装

得捷:
RF ANT 829MHZ/1.94GHZ WHIP STR N

欧时:
TANGO 40 - 4G/3G/2G/WiFi 贯穿螺栓天线，SirettaTANGO 40 是 4G/WiFi 等同于 3G 和 2G 频率的天线。它可通过一体式橡胶垫圈定位在大多数表面上，包括不扁平的表面。SWR：< 3 辐射：全向 极化：垂直 **频带：** 698 Mhz 至 960 MHz @ 1 dBi 增益 1710 Mhz 至 2170 MHz @ 3 dBi 增益 2300 Mhz 至 2700 MHz @ 5 dBi 增益 **机械信息：** 39.8 mm 直径 77.9 mm 长度 N 型插孔螺柱，用于安装天线 螺柱需要 16 mm 直径孔 要安装的材料最大厚度 - 大约为 5 mm 橡胶衬垫可为安装表面提供可靠的防水密封。### 多频段天线，Siretta

e络盟:
WiFi/4G/3G Compact Bolt Through Antenna with N Type Socket Connector

艾睿:
4G/3G/WIFI SMALL FOOTPRINT BOLT THRU ANTENNA WITH N-TYPE F CONNECTOR STUD
