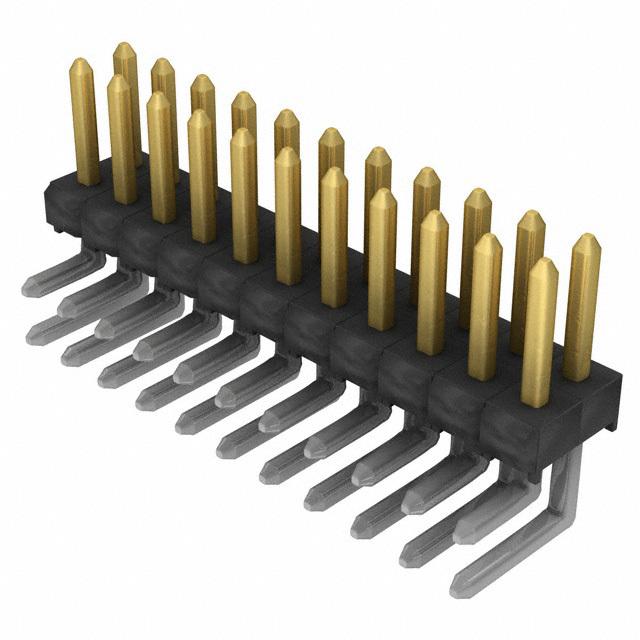

TSW-111-08-S-D-RA

Conn Unshrouded Header HDR 22POS 2.54mm Solder RA Thru-Hole

针座通孔，直角 22 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 22POS 2.54MM

艾睿:
As an added safety precaution, the unshrouded TSW-111-08-S-D-RA header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 22 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 450 VAC. Its pitch is 2.54 mm. It has a right angle body orientation. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. TSW-111-08-S-D-RA is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 27.94 mm long, 5.56 mm tall and 12.44 mm deep.

TSW-111-08-S-D-RA详细参数

TSW-111-08-S-D-RA PDF数据文档
