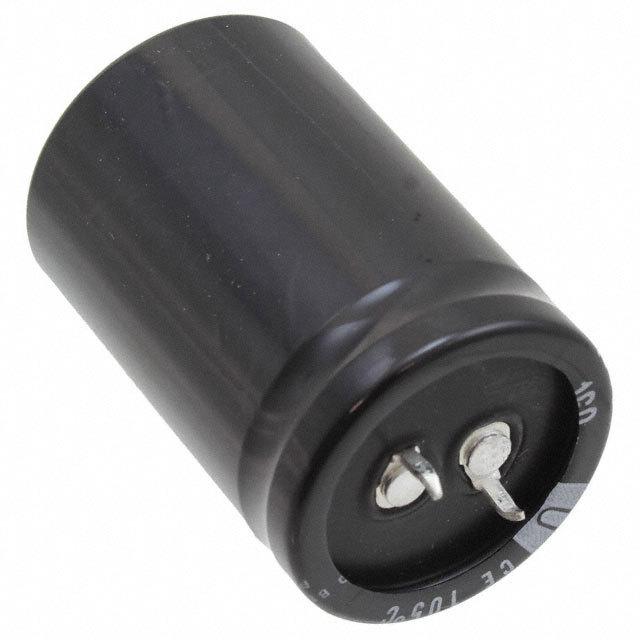

LGU2W181MELZ

180uF ±20% 450V 1000mA Φ22mm

**Features:

**

* Withstanding 3000 Hours Application of Rated Ripple Current at 105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

** **Specifications:

**

* Temperature Range: –40°C to +105°C**

**

* Rated Voltage Range: 16-450 V**

**

* Rated Capacitance Range: 47 to 47000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 180UF 20% 450V SNAP

立创商城:
180uF ±20% 450V

艾睿:
Using this electrolytic LGU2W181MELZ aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. This product is 50 mm tall with a diameter of 22 mm. The LGU2W181MELZ aluminum electrolytic capacitor has a snap-in termination style. It has a tolerance of 20%. Its leakage current is 850@5Min μA. Its capacitance value is 180uF.

Allied Electronics:
Capacitor Aluminum Electrolytic Cap 180uF 450V 20% Temp.105 Snap-In 22X50mm

安富利:
Cap Aluminum 180uF 450V 20% 22 X 50mm 10mm 1000mA 3000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 180uF 450V 20% 22 X 50mm Snap-In 10mm 1000mA 3000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 180uF; 450VDC; Ø22x50mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 180uF 450V 20% 22 X 50mm Snap-In 10mm 1000mA 3000h 105C Bulk
