ISL60007BIB825

精密1.25V和2.50V ， 1.08 ？ -Watt ，高精度FGA电压基准 Precision 1.25V and 2.50V, 1.08?-Watt, High Precision FGA Voltage References

The ISL60007 FGA™ voltage references are extremely low power, very high precision analog voltage references fabricated in "s proprietary Floating Gate Analog technology. The ISL60007 features low supply voltage operation at ultra-low 400nA operating current resulting in typical 1.08µW power consumption.

Features

• Reference Voltage . . . . . . . . . . . . . . . . . 1.25V, and 2.50V

• Absolute Initial Accuracy Options. . . . . ±0.5mV, & ±1.0mV

• 1.08µW typical Power Consumption

• Supply Voltage Range . . . . . . . . . . . . . . . . . . 2.7V to 5.5V

• Ultra-Low Supply Current. . . . . . . . . . . . . . . . . . . . .400nA

• Low Temperature Coefficient Options . . . . . . . . . 3ppm/°C

                                                                  5ppm/°C, & 10ppm/°C

• Long Term Stability. . . . . . . . . . . . . . . . . . . 10ppm/√1kHrs

• 7mA Source & Sink Current

• ESD Protection. . . . . . . . . . . . . 5kV Human Body Model

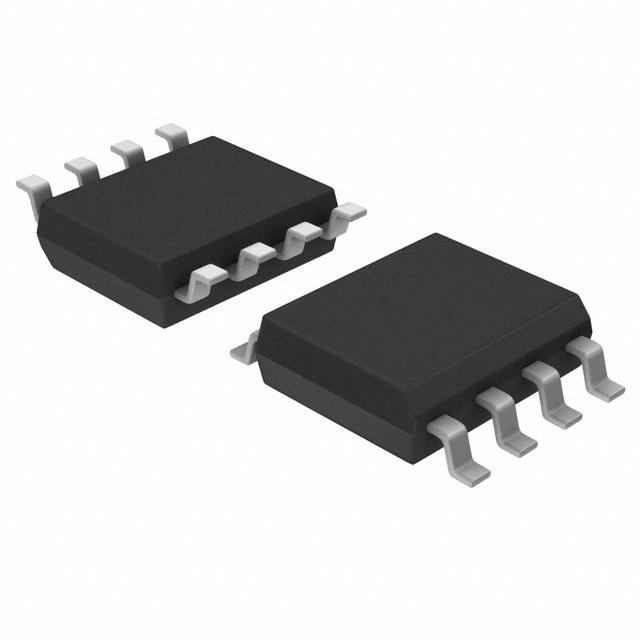

• Standard 8 Ld SOIC Packaging

• Temperature Range . . . . . . . . . . . . . . . . . .-40°C to +85°C

Applications

• High Resolution A/Ds & D/As

• Digital Meters

• Bar Code Scanners

• Mobile Communications

• PDA’s and Notebooks

• Battery Management Systems

• Medical Systems
