0436500529

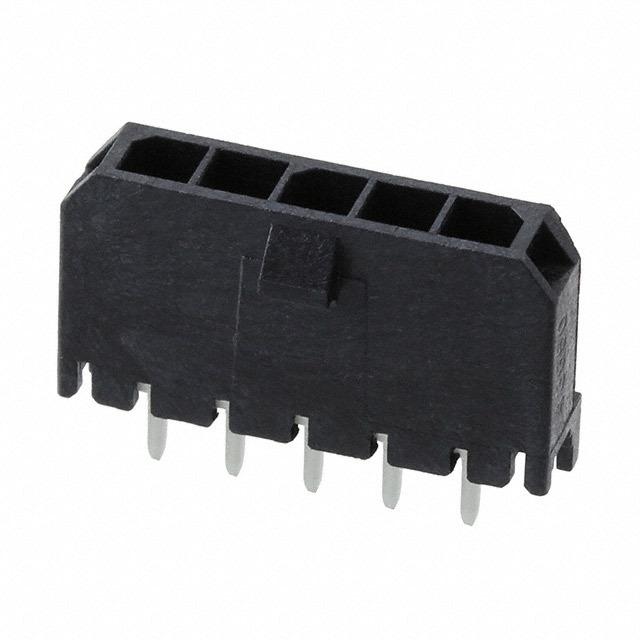

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面贴装兼容，单列，立式，与PCB偏光PEG， 5电路， 0.76μm （ 30μ ”），金（Au ）选择性电镀，灼热丝兼容 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Single Row, Vertical, with PCB Polarizing Peg, 5 Circuits, 0.76μm 30μ" Gold Au Selective Plating, Glow Wire Compatible

针座 通孔 5 位置 0.118"（3.00mm）

得捷:
CONN HEADER VERT 5POS 3MM

艾睿:
Use the 0436500529 power connector from Molex to power up your circuit with the least amount of losses. This HDR connector&s;s 5 contacts that are made out of brass alloy and plated with gold over nickel. This connector has a single port. It has a maximum voltage rating of 600 V. It has a header type gender. Its pitch is 3 mm. It has a straight body orientation. This device has a maximum current rating of 5 A/contact. 0436500529 is housed in thermoplastic. The item will be shipped in tray orientation. This product is 18.64 mm long, 9.9 mm tall and 5.57 mm deep. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 5 terminals use the solder termination method.

安富利:
Conn Wire to Board HDR 5 POS 3mm Solder ST Thru-Hole Tray
