1790513

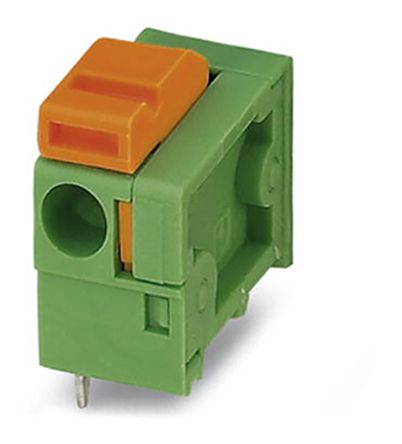

Phoenix Contact COMBICON FFKDS 系列 7.62mm 节距 1 路 母 绿色 印刷电路板接线端子块 1790513, 通孔

1 接线板 - 线至板 水平，带板 - 通孔

得捷:
TERM BLOCK 1POS SIDE ENTRY PCB

欧时:
FFKDSA1/H1-7,62

立创商城:
7.62mm 每排P数:1 排数:1

艾睿:
Connect test equipment together with other components by using this pc terminal block 1790513 PCB terminal block from Phoenix Contact. It has a maximum voltage rating of 320 V. This is a 1-row connector. This device has a maximum current rating of 17.5 A. 1790513 is housed in polyamide. It uses the solder termination method.

Verical:
Conn PC Terminal Block 1 POS Solder Thru-Hole 17.5A

MASTER:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 630 V - nominal cross section: 1.5 mm² - pitch: 7.62 mm - number of positions: 1 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection dir

Online Components:
Conn PC Terminal Block 1 POS Solder Thru-Hole 17.5A

Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 630 V - nominal cross section: 1.5 mm² ...
