74HCT4511N

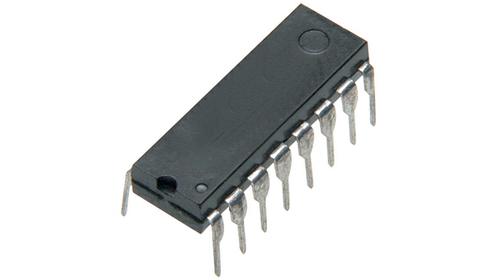

NXP  74HCT4511N  芯片, 74HCT CMOS逻辑器件

The is a BCD to 7-segment Latch/Decoder/Driver pin compatible with 4511 of the 4000B series. It has four address inputs D1 to D4, an active low latch enable input LE\\, an active low ripple blanking input BI\\, an active low lamp test input LT\\ and seven active high segment outputs Qa to Qg. When LE\ is low, the state of the segment outputs Qa to Qg is determined by the data on D1 to D4. When LE\ goes high, the last data present on D1 to D4 are stored in the latches and the segment outputs remain stable. When LT\ is low, all the segment outputs are high independent of all other input conditions. With LT\ high, a low on BI\ forces all segment outputs low. The inputs LT\ and BI\ do not affect the latch circuit.

.

Latch storage of BCD inputs

.

Blanking input

.

Lamp test input

.

Driving common cathode LED displays

.

Guaranteed 10mA drive capability per output

.

Non-standard output capability
