MAX1608EEE

八路的SMBus至并行I / O扩展器 Octal SMBus-to-Parallel I/O Expanders

General Description

The MAX1608/MAX1609 provide remote input/output I/O expansion through an SMBus™ 2-wire serial interface.

Each device has eight high-voltage open-drain outputs that double as TTL-level logic inputs, providing continuous bidirectional capabilities. The open-drain outputs tailor the MAX1608/MAX1609 for use in load-switching and other level-shifting applications as well as general-purpose I/O applications.

Features

♦Serial-to-Parallel or Parallel-to-Serial Conversions

♦8 General-Purpose Digital I/O Pins withstand +28V

♦SMBus 2-Wire Serial Interface

♦Supports SMBSUSAsynchronous Suspend

♦9 Pin-Selectable Slave Addresses

♦Outputs High Impedance on Power-Up MAX1609

♦Outputs Low on Power-Up MAX1608

♦2.5µA Supply Current

♦+2.7V to +5.5V Supply Range

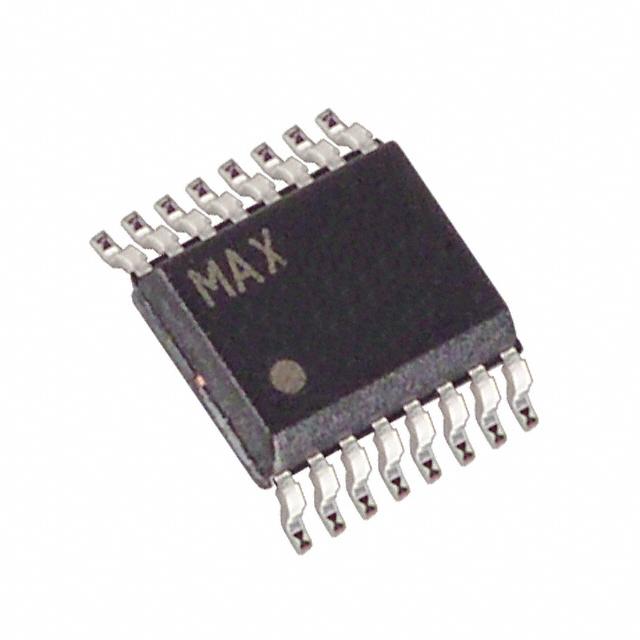

♦16-Pin QSOP Package

Applications

Parallel I/O Expansion

Power-Plane Switching

Notebook and Desktop Computers

Servers and Workstations

Notebook Docking Stations

Industrial Equipment
