R&S HMO1222

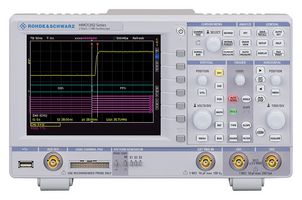

ROHDE & SCHWARZ R&S HMO1222 Oscilloscope, HMO1202 Series, 2 Analogue, 8 Digital, 200MHz, 2GSPS, 2 Mpts, 1.75ns

The HMO1222 from Rohde & is a two-channel digital oscilloscope with 200MHz, two analogue and eight digital channels. The HMO1222 oscilloscope includes mixed signal functionality, pattern generator, digital voltmeter, spectrum analyzer, function analyzer, component tester and production tester all in one instrument. The HMO1222 oscilloscopes offer hardware-based signal triggering and decoding for all common protocols such as I2C, SPI, UART, CAN and LIN.

.

Sampling rate of 2 x 1GSa/s or 1 x 2GSa/s

.

Rise time of 1.75ns and fast acquisition rate up to 10.000wfm/s by signal trouble shooting

.

Vertical sensitivity from 1mV/Div up to 10V/Div

.

Pattern generator programmable 4bit pattern up to 2KBit length & 50Mbit/s

.

Digital voltmeter of ACrms, DC, DCrms, PeakPeak

.

Frequency analyzer FFT spectral analysis with up to 128 kPts

.

Function generator has frequency of 0.1Hz to 50KHz DC, sine, square, triangle/ramp or programmable

.

16.5cm 6.5" VGA colour display640 H x 480 V pixels display

.

Dimension is 285mm x 175mm x 140mm and weight is 2.5Kg
