FR01FC16P-S

NKK SWITCHES  FR01FC16P-S  旋转开关, 1P, 16路, 0.1A, 5V

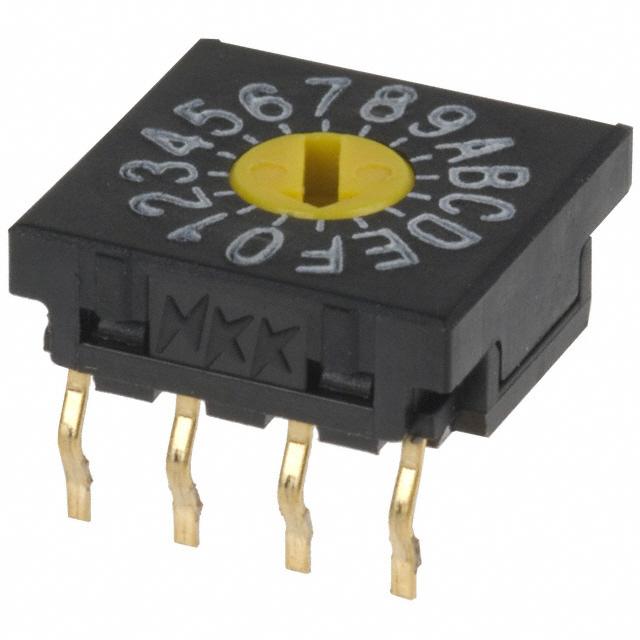

Compact in size, 10mm DIP rotary encoders save on pcb space. Standard pcb grid hole spacing makes this DIP package easily adaptable from design perfboard to finished pcb. Choice of actuations include screwdriver slotted, optional snap-on knob, 7mm tall shaft or threaded bushing with flatted metal shaft and are available in straight or right angle pcb mount configurations. Dial wheel actuator available in straight pc mount only.

立创商城:
FR01FC16P-S

得捷:
SW ROTARY DIP HEX COMP 100MA 5V

贸泽:
Coded Rotary Switches 10MM HEXADECIMAL 16P COMPLEMENT CODED

e络盟:
NKK SWITCHES  FR01FC16P-S  旋转开关, 1P, 16路, 0.1A, 5V

艾睿:
Add push button-type user control to your printed circuit board using the FR01FC16P-S dual in-line package switch from NKK Switches. It has a SP16T configuration. This device has a maximum current rating of 0.1 A @ 5VDC. This DIP switch has an operating temperature range of -25 °C to 85 °C. The FR01FC16P-S DIP switch has a PC pin termination style. This product is 10 mm long, 3.8 mm tall and 10 mm deep. The maximum DC voltage rating is 5 VDC.

Allied Electronics:
Switch, Rotary DIP, Screwdriver Actuation, Complement Coded, Hesxadecimal, Str

Chip1Stop:
Switch DIP SP16T 16 Flush Screwdriver 0.1A 5VDC PC Pins 625Cycles Thru-Hole Tube

Verical:
Switch DIP N.O./N.C. SP16T 16 Flush Screwdriver 0.1A 5VDC PC Pins 625Cycles Thru-Hole Tube

Newark:
# NKK SWITCHES  FR01FC16P-S  Rotary Switch, Non Illuminated, 100 mA

Powell:
DIP ROTARY
