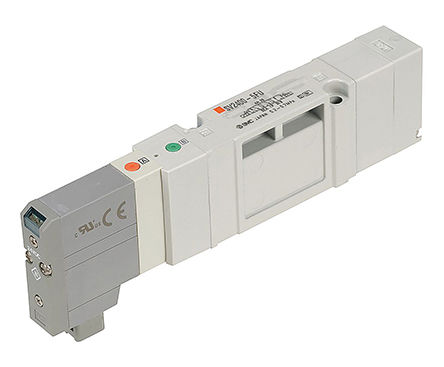

SV2200-5FU

SV 系列电磁阀通过利用多路连接器而非用于内部歧管布线的传统引线，SV 系列设计使安装和更换更简便。 盒式基座类型歧管提供更大的灵活性，使用简单的释放机制可添加改良的截面。 传统的系杆基座歧管还可提供极佳的灵活性。 使用 34 引脚连接器允许多达 16 个带双电磁阀的站点。流体：空气 工作压力范围：-100kPa 至 0.7MPa 响应时间（0.5MPa 时）：18ms 或更少 线圈额定电压：12、24V 直流 环境和流体温度：-10 至 +50°C 外壳：IP67（基于 IEC529） ### SMC SV 系列

By connecting each block with a connector, makes the manifold stations greatly simplified. Cassette base-type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base-type manifolds are also available. The use of 34-pin connectors allows up to 16 stations with double solenoids.

**Features:**

* Simple Cassette Style “Plug and Play” Manifold Bases Snap Together to Allow You to Configure Your Own Manifold

* Manifold Sections Plug Together Electrically and Pneumatically Eliminating the Need for Wiring Harnesses or Plumbing

* Captive Seals Simplify Assembly And Reduce Changes for Leaks

* Built-In Replaceable One-Touch Fittings

* DIN Rail Mount Standard

* Integrated Exhaust Silencer or Piped Exhaust Available
