EVAL-ADF7021-NDBIZ

ANALOG DEVICES  EVAL-ADF7021-NDBIZ  开发子板, 窄带宽收发器, 426MHZ至429MHZ

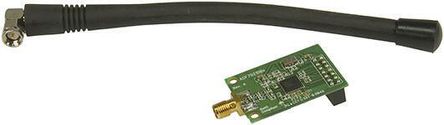

ADF7021-NDBZ5 80-650MHz RF Transceiver Evaluation Daughter Board

The

.

*EVAL-ADF7021-NDBZ5** is an evaluation module for the ADF7021-N transceiver device. It plugs into an EVAL-ADF70xxMBZ2 motherboard which provides a full set of development features.

ADF7021-N device set up for 80-650MHz frequency operation

Motherboard connector

SMA antenna connector

### 注

An EVAL-ADF70xxMBZ2 motherboard is required to use this module.

得捷:
BOARD EVALUATION FOR ADF7021

欧时:
Analog Devices 射频开发套件 EVAL-ADF7021-NDBIZ

艾睿:
ADF7021-N RF Transceiver Daughter Board

安富利:
The ADF7021 is a high performance, low power, highly integrated 2FSK/3FSK/4FSK transceiver. It is designed to operate in the narrow-band, license-free ISM bands, and in the licensed bands with frequency ranges of 80 MHz to 650 MHz and 862 MHz to 950 MHz. The device has both Gaussian and raised cosine transmit data filtering options to improve spectral efficiency for narrow-band applications. It is suitable for circuit applications targeted at European ETSI EN 300 220, the Japanese ARIB STD-T67, the Chinese short range device regulations, and the North American FCC Part 15, Part 90, and Part 95 regulatory standards. A complete transceiver can be built using a small number of external discrete components, making the ADF7021 very suitable for price sensitive and area sensitive applications. The range of on-chip FSK modulation and data filtering options allows users greater flexibility in their choice of modulation schemes while meeting tight spectral efficiency requirements. The ADF7021 a

Chip1Stop:
Evaluation Kit For High Performance Narrow-Band Transceiver IC

Verical:
Evaluation Kit For High Performance Narrow-Band Transceiver IC
