MDO3102

Tektronix 混合域示波器 MDO3000 系列MDO3000 示波器旨在满足用户现在和未来的需要和愿望。 每种型号均为多功能，集成了基本频谱分析仪、波检测器导航、MSO、串行和并行总线触发和分析以及数字电压表。 可在最初购买示波器时或以后的任何时间购买可选仪器升级和应用模块。 提供以下 MDO3000 仪器升级模块：MDO3AFG 797-3356 任意函数发生器，可产生 13 种预定义波形和任意波形；MDO3MSO 797-3352 16 个通道，包括 P6316 661-3295 数字探头和附件；MDO3SA 797-3359 将频谱分析仪输入频率范围增至 9kHz - 3GHz ，并可捕获高达 3GHz 的带宽；MDO3SEC 797-3365 可增强仪器安全性。 提供以下串行总线触发和协议分析模块：MDO3AERO 797-3371 航空 MIL-STD-1553；MDO3AUDIO 797-3374 音频 l2S, LJ, RJ, TDM；MDO3AUTO 797-3378 汽车 CAN、LIN；MDO3COMP 797-3387 计算机 RS-232/422/45/UART；MDO3EMBD 797-3380 嵌入式 l2C、SPI；MDO3FLEX 797-3384 汽车、FlexRay；MDO3USB 797-3393 USB 2.0 Dec-LS/FS/HS、Trig-LS/FS。 提供其他分析模块：MDO3PWR 797-3362 功率分析；MDO3LMT （797-3368 限制和屏蔽测试。### 注推荐与 MDO3000 系列示波器一起使用的探头包括：无源 - TPP0250 797-3396、TPP0500B 797-3390、TPP0502 734-5016、TPP0850 734-5010、TPP1000 728-6759；有源 - TAP1500 661-3286、TAP2500 232-288、TAP3500 668-7155；差分 - TDP0500 661-3292、TDP1000 668-7167、TDP1500 668-7161、THDP0100 752-7353、THDP0200 752-7357、TMDP0200 752-7366；电流 - TCP0030A 781-0807、TCP0150 661-3283。### 混合域示波器

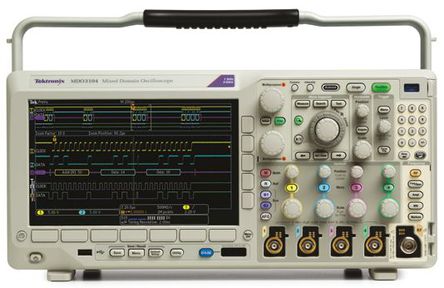

While the MDO3000 Series Mixed Domain Oscilloscope features other built-in instruments, it is first and foremost an oscilloscope. And a versatile one at that. The is packed with timesaving tools to help you discover, capture, search and analyze problems in your design faster than ever. While you may not know what the future holds, you can rest easy knowing your oscilloscope is ready for it. The MDO3102 is fully upgradeable, giving you the ability to add instruments and upgrade bandwidth as your test needs evolve. It"s the scope you need today that"s ready for tomorrow. They come with a built-in spectrum analyzer, featuring an independent RF acquisition system for the most accurate RF measurements, you can use one instrument as an oscilloscope and spectrum analyzer without compromising on performance.

.

Dedicated front panel controls enable easy zoom and navigation through 10 Mpoint records

.

250,000 waveforms per second acquisition rate

.

Built-in spectrum and protocol analyzer

.

Built in 4-digit voltmeter with AC+DC RMS, AC RMS, and DC measurements

.

Built-in logic analyzer with 16 digital channels

.

Integrated, upgradable arbitrary / function generator

.

Serial and parallel bus triggering and analysis

.

FastAcq™ high-speed waveform capture rate finds elusive signal anomalies quickly

.

Wave Inspector® Controls provide easy navigation and automated search of waveform data

.

33 automated measurements and waveform histograms for simplified waveform analysis

.

Small footprint and lightweight - Only 5.8 in. 147 mm deep and 9.2 lb. 4.2 kg

.

Front and rear USB host ports enable easy transfer of screen shots, settings, and waveform data

.

A video port on the instrument allows the display to be exported to an external monitor or projector

.

The standard 10/100 Ethernet port on the rear of the instrument enables easy connection to networks
