45802-0311

HD Mezz 插座组件 - 45802 系列### 注有关配接 HD Mezz 插头组件，请参见典型库存号 729-2940。### 1.20mm HD Mezz Board to Board System - MolexThe Molex HD Mezz system is suitable for applications requiring high pin-count devices on mezzanine or module printed circuit boards PCBs. The design of the HD Mezz system allows for multiple stack heights and circuit-size extensions as well as utilizing Molex"s patented solder-attach method for PCB termination. The HD Mezz can handle data rates up to 12.5 Gbps through its 14 differential pairs per cm.

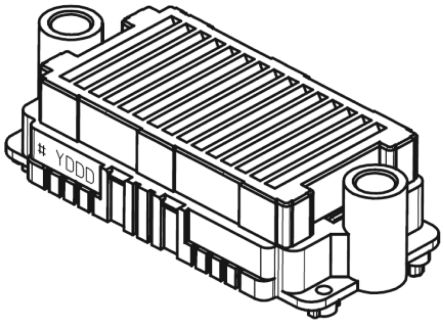

HD Mezz 组件 - 45802 系列

### 注

有关配接 HD Mezz 插头组件，请参见典型库存号 729-2940。

### 1.20mm HD Mezz 板到板系统 -

Molex HD Mezz 系统适用于夹层上需要高引脚数设备或模块印刷电路板 PCB 的应用。HD Mezz 系统的设计允许多种堆叠高度和电路尺寸扩展，以及使用 Molex 的专利焊接连接方法，用于印刷电路板端接。HD Mezz 通过其每 cm² 14 个差分对可处理高达 12.5 Gbps 的数据传输率。

欧时:
HDMez Rect Assy Std 8mm 143w Tn

立创商城:
45802-0311

贸泽:
Board to Board & Mezzanine Connectors HDMezz Recpt Assy 08 ssy 08mm 143 Ckt Tin

Allied Electronics:
HD MEZZ Series 1.2 mm, 2 mm 143 Way 11 Row Straight PCB Socket Female

Win Source:
HDMEZ RECT ASSY STD 08MM 143CKT / Position Connector
