1672600

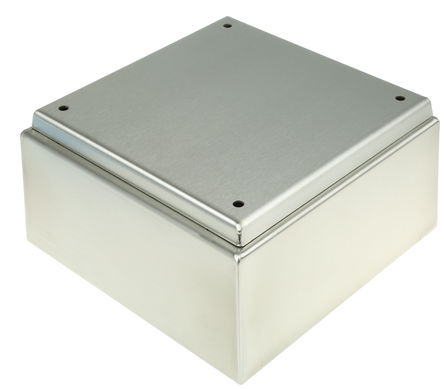

IP69K Hygienic Terminal BoxesThe Rittal HD Hygienic Terminal Box is suitable for accepting electrical equipment in the food processing industry splash area and non-food area according to DIN EN 1672-2. The enclosure is resistant to cleaning and disinfection as well as being dust-resistant, protecting installed components against intensive water spray protection category IP66 and high-pressure cleaning protection category IP69K.Stainless steel 1.4301 AISI 304 1.5mm enclosure and cover Sheet steel, zinc-plated, 2.0mm mounting bracket Stainless steel quick-release locks Silicone Seal, compliant with FDA 21 CFR 177.2600 Intensive water spray IP66 and high-pressure cleaning IP69K Enclosure and cover have brushed, grain 400, RA Blue, dyed seal, RAL 5010 ### 标准EN 60 529### 随附cover, mounting bracket pre-assembled, seal and quick-release locks enclosed.### 不锈钢

Hygienic design enclosures are designed to meet the washdown demands of the food and beverage industry.

**Configuration:**

* One-Piece Enclosure Body

* Enclosure Body Is Sloped 3° on All Sides

* Cover Edges Are Sloped 10° on All Sides

* Screw Cover with Quick Release Cover Screws

* Removable Blue Silicone Gasket Between Door and Body

* Internal Mounting Rails for Mounting of Accessories e.g. Mounting Panel, DIN Rail

**Material:**

* Door and Body: Stainless Steel, Type 304, 16 Gauge 1.5 mm

* Mounting Rails: Steel, Zinc Plated, 14 Gauge 2.0 mm

* Cover Screws: Stainless Steel, Type 304

* Gasket: Silicone

**Finish:**

* Door and Body: Brushed, 400 Grain Peak to Valley Height of Grain <0.8 μm

* Gasket: RAL 5010 Blue

**Ratings:**

* IP66 to IEC 60 529

* IP69K to DIN 40 050-9

* Gasket Seal Conforms to FDA Guideline 21 CFR 177.2600

* NEMA 4X
