R125433000W

SMA male flange socketsSMA male sockets with full square or stub flange. These sockets are designed to be panel mounted using four mounting holes screws not provided. Solder connection. These connectors offer a high level of performance and may be used for all high frequency applications. Operating frequency: | 0 → 18 GHz ---|--- Insulation resistance: | Min. 5000 MΩ Endurance: | 500 operations Operating temperature: | –65 °C → +165 °C Materials | \- body:  gold-plated stainless steel \- contact:  gold-plated brass \- insulation:  PTFE \- seals:  silicone elastomer ### Radiall SMA 镀金不锈钢SMA 连接器符合 MIL-C-39012 和 BS 9210 N006 标准,用于高性能射频应用。 连接器在各种常用半硬和柔性电缆应用中具有镀金不锈钢主体。  | **RG405** | **RG402 ** | **柔性电缆** ---|---|---|--- 频率范围 直流至: |   |   |       直向连接器 | 18GHz | 18GHz | 12.4GHz     直角连接器 | 12.4GHz | 12.4GHz | 12.4GHz VSWR 最大(f = 频率 GHz) |   |   |       直向连接器 | 1.07 + 0.01f | 1.05 + 0.01f | 1.15 + 0.02f     直角连接器 | 1.1 + 0.01f | 1.1 + 0.01f | 1.15 + 0.03f 绝缘电阻最小值 | 5000MΩ | 5000MΩ | 5000MΩ 触点电阻最大值 |   |   |       中心触点 | 3mΩ | 3mΩ | 3mΩ     外部触点 | 4mΩ | 4mΩ | 4mΩ 工作电压 | 350V 交流 | 500V 交流 | 250V 交流 耐电压 | 1000V 交流 | 1500V 交流 | 750V 交流

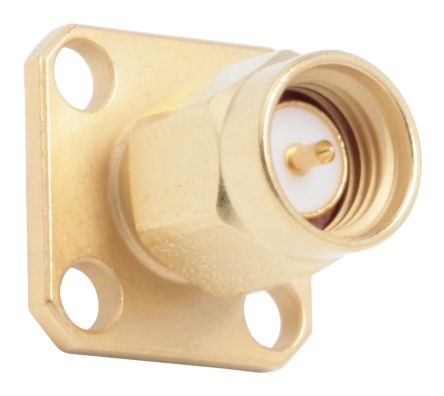

SMA male flange sockets

SMA male sockets with full square or stub flange.

These sockets are designed to be panel mounted using four mounting holes screws not provided.

Solder connection.

These connectors offer a high level of performance and may be used for all high frequency applications.

### SMA 镀金不锈钢

SMA 符合 MIL-C-39012 和 BS 9210 N006 标准,用于高性能射频应用。 连接器在各种常用半硬和柔性电缆应用中具有镀金不锈钢主体。
