TSW-120-17-T-S

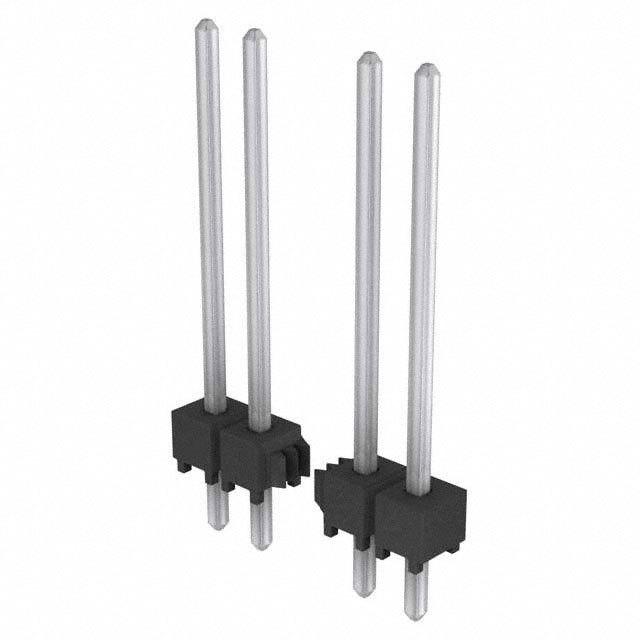

SAMTEC TSW-120-17-T-S Board-To-Board Connector, 2.54mm, 20Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 20 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 20POS 2.54MM

欧时:
Classic PCB HDR Strips 0.100"

艾睿:
Think of Samtec&s;s unshrouded TSW-120-17-T-S header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 2.54 mm. It has a header type gender. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 50.8 mm long, 18.28 mm tall and 2.54 mm deep. TSW-120-17-T-S is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-120-17-T-S  Board-To-Board Connector, 2.54 mm, 20 Contacts, Header, TSW Series, Through Hole, 1 Rows
