0022281360

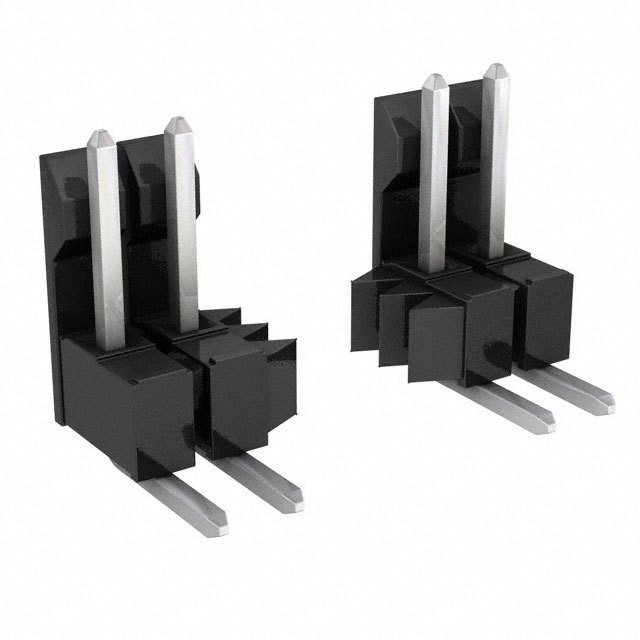

2.54毫米（ .100 ）间距KK®头，分离式，直角，用摩擦锁， 36电路，锡（Sn ）镀层 2.54mm .100 Pitch KK® Header, Breakaway, Right Angle, with Friction Lock, 36 Circuits, Tin Sn Plating

Connector Header Through Hole, Right Angle 36 position 0.100" 2.54mm

得捷:
KK 100 HDR FRLK RTAN 36POS TIN

艾睿:
Safety is an important concern when designing electronic devices. Molex&s;s wire to board 0022281360 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 36 contacts that are made out of brass and plated with tin over nickel. It has a header type gender. It has a maximum voltage rating of 250 V. Its pitch is 2.54 mm. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 4 A/contact. 0022281360 is housed in black nylon. It uses the solder termination method. This product is 91.44 mm long, 7.21 mm tall and 11.23 mm deep. This connector has an operating temperature of -40 to 80 °C.

安富利:
Conn Wire to Board HDR 36 POS 2.54mm Solder RA Thru-Hole Bag
