ATA6623C-TAPY

LIN Bus Transceiver with Integrated Volt age Regulator

Description

ATA6623/ATA6625 is a fully integrated LIN transceiver, designed according to the LIN specification 2.0 and 2.1, with a low-drop voltage regulator 3.3V/5V/50 mA. The combination of voltage regulator and bus transceiver makes it possible to develop simple, but powerful, slave nodes in LIN Bus systems. ATA6623/ATA6625 is designed to handle the low-speed data communication in vehicles for example, in convenience electronics.

Features

• Supply Voltage up to 40V

• Operating Voltage VS= 5V to 27V

• Typically 10 µA Supply Current During Sleep Mode

• Typically 57 µA Supply Current in Silent Mode

• Linear Low-drop Voltage Regulator:

   – Normal, Fail-safe, and Silent Mode

   – ATA6623: VCC= 3.3V ±2%

   – ATA6625: VCC= 5.0V ±2%

   – Sleep Mode: VCC is Switched Off

• VCCUndervoltage Detection with Reset Open Drain Output NRES 4 ms Reset Time

• Voltage Regulator is Short-circuit and Over-temperature Protected

• LIN Physical Layer According toLIN 2.0, 2.1 and SAEJ2602-2

• Wake-up Capability via LIN Bus 90 µs Dominant

• TXD Time-out Timer

• Bus Pin is Overtemperature and Short-circuit Protected versus GND and Battery

• Advanced EMC and ESD Performance

• Fulfills the OEM “Hardware Requirements for LIN in Automotive Applications Rev1.0”

• Interference and Damage Protection According to ISO7637

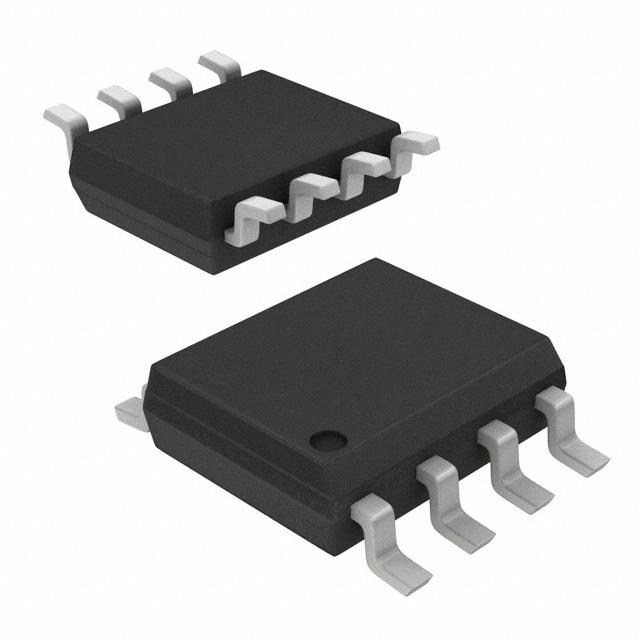

• Package: SO8
