0022122204

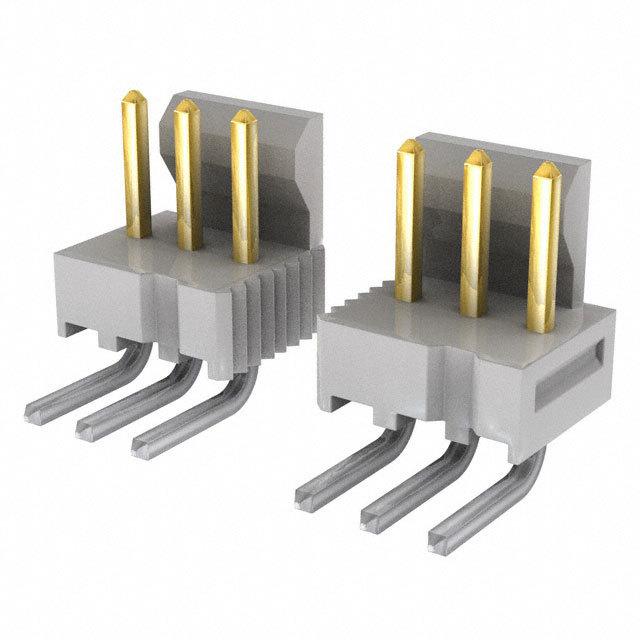

2.54毫米（ .100 ）间距KK®固体头，直角，用摩擦锁， 20电路， 0.51μm （ 20μ ），金（Au ）镀层 2.54mm .100 Pitch KK® Solid Header, Right Angle, with Friction Lock, 20 Circuits, 0.51μm 20μ Gold Au Plating

针座 通孔，直角 20 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 20POS 2.54MM

贸泽:
Molex KK 100 HDR FRLK RTAN 20 CKT GOLD

艾睿:
Reduce safety concerns with this wire to board 0022122204 header connector from Molex which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 20 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 250 V. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 4 A/contact. 0022122204 is housed in white nylon. It uses the solder termination method. This connector has an operating temperature of -40 to 80 °C. This product is 50.8 mm long, 6.35 mm tall and 12.83 mm deep.

Verical:
Conn Wire to Board HDR 20 POS 2.54mm Solder RA Thru-Hole KK® Bag
