MAX5490GC01000+T

MAXIM INTEGRATED PRODUCTS  MAX5490GC01000+T  电阻, 固定网络

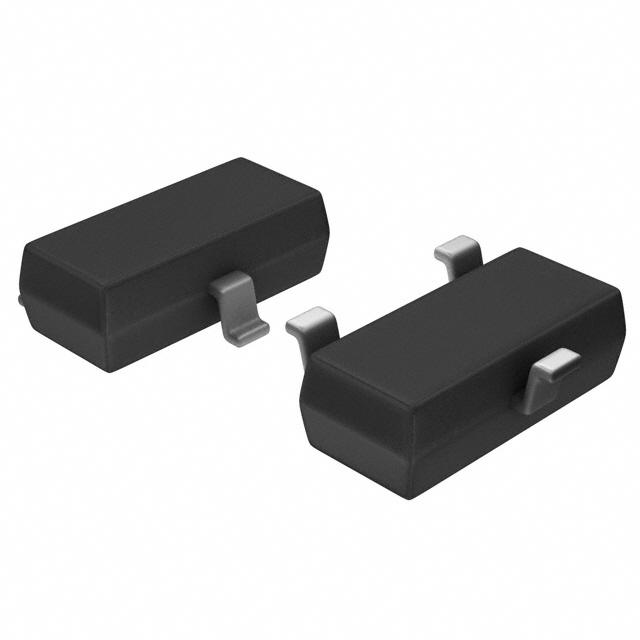

The is a 100Kohm precision-matched resistor-divider in 3 pin SOT-23 package. This precision resistor divider consists of two accurately matched resistors with access to ends and centre of divider. The device provides an extremely low resistance-ratio temperature drift of 1ppm/°C typ over -55°C to +125°C and has an end to end resistance of 100Kohm. It is ideal for precision gain-setting applications where tight resistance matching and low temperature drift are necessary. It is used in base stations, instrumentation, automatic test equipment and precision gain setting.

.

Resistor ratio of 1:1

.

Maximum resistor-ratio accuracy is 0.1%

.

Up to 80V operating voltage across sum of R1 and R2

.

Maximum continuous current is 840µA

.

Maximum power rating is 67.2mW

.

3MHz -3dB bandwidth

.

Thermal noise of 45µVRMS

.

Absolute temperature coefficient of resistance is 35ppm/°C

.

Thermal noise of 45µVrms & current noise of -25dB In accordance with MIL-STD-2020 method 30B
