TSW-124-17-G-S

SAMTEC TSW-124-17G-S Board-To-Board Connector, 2.54mm, 24Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 24 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 24POS 2.54MM

艾睿:

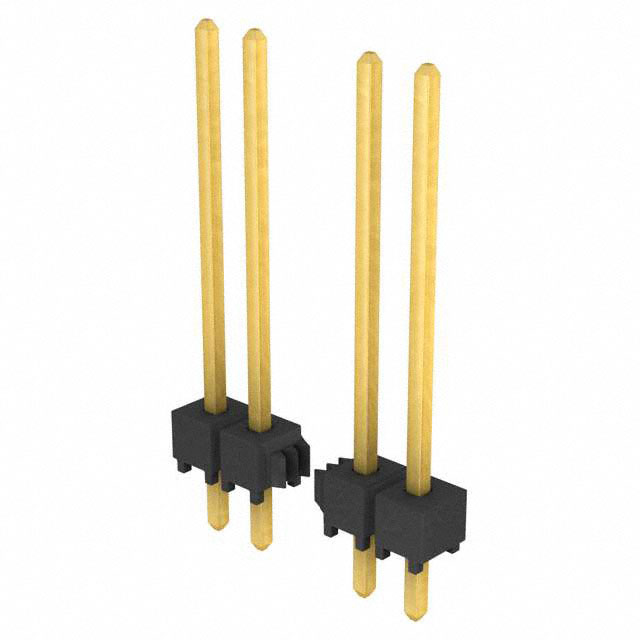

This unshrouded TSW-124-17-G-S header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 24 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 550 VAC. It has a header type gender. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-124-17-G-S is housed in black polyester. This product is 60.96 mm long, 18.28 mm tall and 2.54 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

Newark:
# SAMTEC  TSW-124-17-G-S  Board-To-Board Connector, 2.54 mm, 24 Contacts, Header, TSW Series, Through Hole, 1 Rows
