SRC1202S

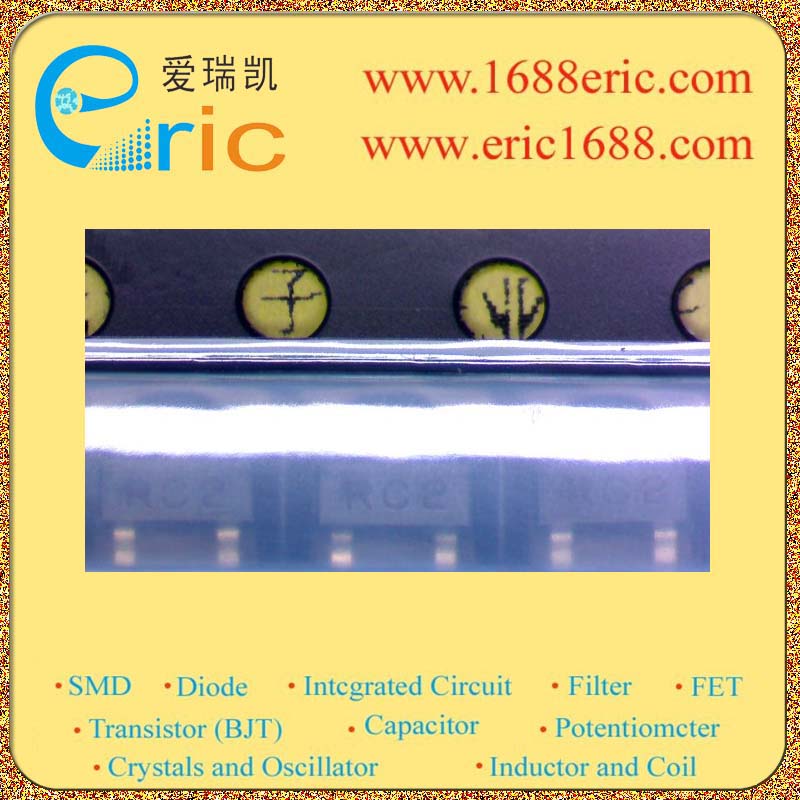

SRC1202S 带阻NPN三极管 50V 100mA/0.1A 10K 10K SOT-23/SC-59 marking/标记 RC2 开关 接口电路 驱动电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| 50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| 50V 集电极连续输出电流IC Collector CurrentIC| 100mA/0.1A 基极输入电阻R1 Input ResistanceR1| 10KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 10KΩ/Ohm 电阻比R1/R2 Resistance Ratio| 1 直流电流增益hFE DC Current GainhFE| 截止频率fT Transtion FrequencyfT| 36MHz 耗散功率Pc Power Dissipation| 0.2W/200mW Description & Applications| Descriptions • Switching application • Interface circuit and driver circuit application Features • With built-in bias resistors •Simplify circuit design • Reducea quantity of parts and manufacturing process Highpackng density 描述与应用| •开关应用 •接口电路和驱动电路中的应用 特性 •借助内置的偏置电阻 •简化电路设计 •减少了部件数量和 制造工艺 •高堆积密度
