Standard Human Machine Interface KitThe Standard Human Machine Interface Card HMI_OLED-V1 is an application expansion satellite card of Hexagon Application Kits. The satellite card along with a CPU board CPU_45A-V2 demonstrates the Human Machine Interface HMI capabilities of XMC4500.Connection to CPU board i.e. CPU_45A-V2 via HMI satellite connector Micro SD card connector, 4-bit mode Passive matrix OLED display PMOLED, 1.54 inch screen size, 160x128 pixels Stereo audio codec TLV320AIC3204 2.5mm stereo receptacle for audio headsets with microphone 2 touch buttons with LED"s IC based I/O expander with 8 channels Power supply via satellite connector ### 随附Standard Human Machine Interface Card HMI_OLED-V1 Headset### XMC4000 系列 32 位微控制器 ARM® Cortex™-M4

Standard Human Machine Interface Kit

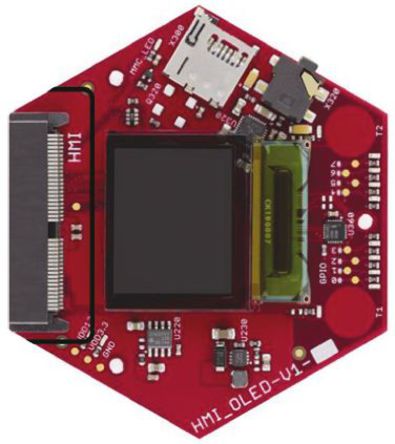

The Standard Human Machine Interface Card HMI_OLED-V1 is an application expansion satellite card of Hexagon Application Kits. The satellite card along with a CPU board CPU_45A-V2 demonstrates the Human Machine Interface HMI

capabilities of XMC4500.

Connection to CPU board i.e. CPU_45A-V2 via HMI satellite connector

Micro SD card connector, 4-bit mode

Passive matrix OLED display PMOLED, 1.54 inch screen size, 160x128 pixels

Stereo audio codec TLV320AIC3204

2.5mm stereo receptacle for audio headsets with microphone

2 touch buttons with LED"s

IC based I/O expander with 8 channels

Power supply via satellite connector

### 随附

Standard Human Machine Interface Card HMI_OLED-V1

Headset
