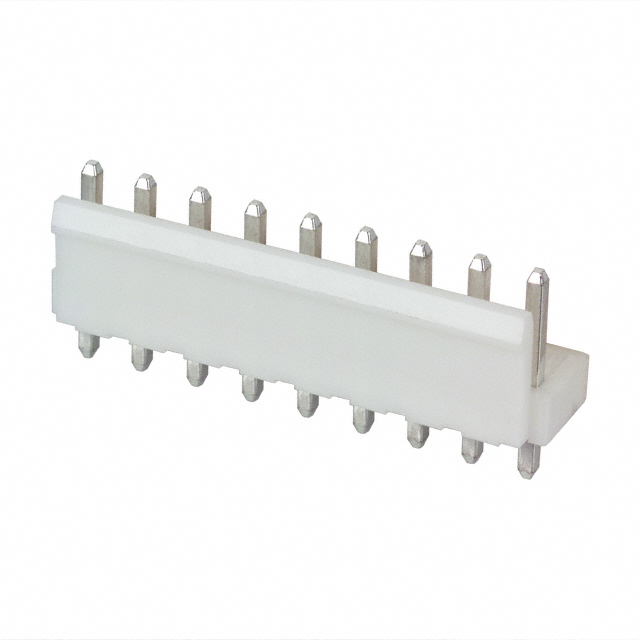

B9P-VH-FB-B

3.96mm pitch/Disconnectable Crimp style connectors

[

.

*JST**]

This small, field-proven connector for printed circuit boards is reliable and has a large current carrying capacity. It can be used with a wide variety of signal, power supply, and output circuits that appear in consumer electronic products.

• Proven box contact

• Compact connector with a large capacity

• Secure contact and mounting

Specifications

• Current rating: 10A AC, DC AWG #16

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

                            including temperature rise in applying electrical current

• Contact resistance: Initial value/ 10m Ω max.

   After environmental testing/ 20m Ω max.

• Insulation resistance: 1,000M Ω min.

• Withstanding voltage: 1,500V AC/minute

• Applicable wire: AWG #22 to #16

• Applicable PC board thickness: 1.6mm
